Whirlpool RB275PXK0 Parts List

Popular Searches: (Click to search)    broil  channel  clip  arm  bulb  door  oven  screw  spring  therm  unit


Select a Diagram

02 - Control Panel

03 - Upper Oven

04 - Lower Oven

05 - Lower Oven Door , Lit/optional

06 - Upper Oven Door

07 - Wiring Harness

Select Diagram ... 02 - Control Panel 03 - Upper Oven 04 - Lower Oven 05 - Lower Oven Door , Lit/optional 06 - Upper Oven Door 07 - Wiring Harness

05 - Lower Oven Door , Lit/optional   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	329685	Liner, Door	Call for Availability
	WP488729	Screw, 8-18 X 1/2 (3)	$4.80  In-Stock Retail: $4.59
	311056	Screw, (4)	$4.40 Special Order
2	258711	Seal, Pano Glass	Call for Availability
3	258988	Glass, Inner 30``	Call for Availability
4	307924	Baffle, Insulation	Call for Availability
5	258990	Spacer, Insulation Baffle (4)	Call for Availability
	307748	Screw, 10a X 1\2 Black (4)	$4.40 Special Order
7	312783	Channel, Rubber (4)	Call for Availability
8	310427	Frame, Door 30``	Call for Availability
9	309069	Glass, Outer	Call for Availability
10	310705	Hold Down, Glass (2)	$4.40 Special Order
11	307748	Screw, 10a X 1/2 Black (2)	$4.40 Special Order
	310428	Top, Door Frame	Call for Availability
12	WP90296	Clip	$4.80 Special Order
13	308293	Seal, Foam	Call for Availability
14	310706	Clip, Glass (10)	Call for Availability
15	314235	Clip (2)	$4.40 Special Order
17	WP355515	Screw, Handle (2)	$4.80 Special Order

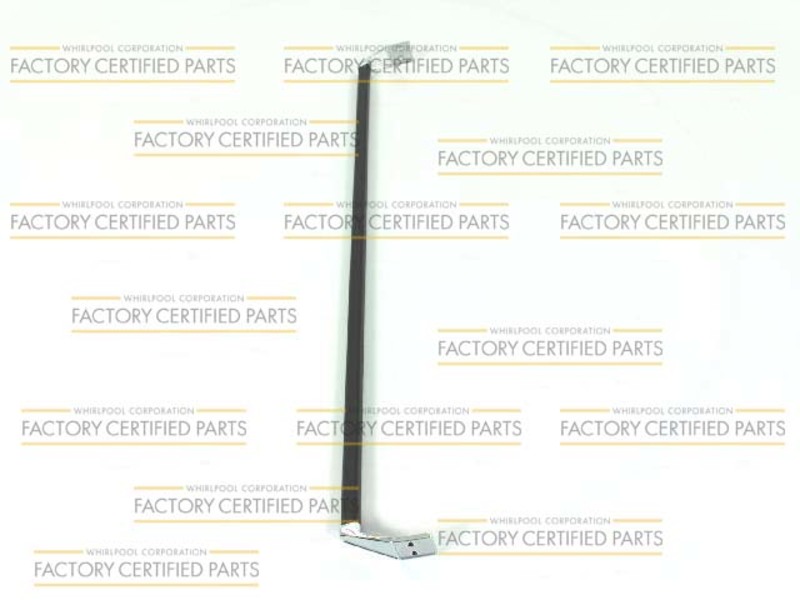

	312722	Handle, Oven Door	Call for Availability
20	312223	Pin, Wedge (2)	Call for Availability
22	261881	Rotisserie (top Oven Only)	Call for Availability
	242832	Wire, Yellow 14 Ga. 200~c	Call for Availability
	261810	Touch-up Oven (1 Oz.)	Call for Availability
	261582	Grease	$67.40 Special Order
	WPW10208653	Insulation, Fiberglass (1-1/2`` X 24`` X 120``)	$55.40 Special Order
	WPW10208653	Insulation, Fiberglass (2-1/2`` X 22`` X 120``)	$55.40 Special Order
	241430	Foil, Aluminum Oven (18`` X 25`)	Call for Availability
	242820	Wire (14 Ga. 150 C Black)	Call for Availability
	311896	Pushnut (2)	Call for Availability
	242828	Wire (12 Ga. 150 C Black)	$63.20 Special Order
	242821	Wire (14 Ga. 150 C Blue)	$43.50 Special Order
	242822	Wire (14 Ga. 150 C Brown)	$39.60 Special Order
	242830	Wire (14 Ga. 200 C Brown)	$23.40 Special Order
	242823	Wire (14 Ga. 150 C Green)	$39.60 Special Order
	242824	Wire (14 Ga. 150 C Orange)	$214.30 Special Order
	242829	Wire, Red 12 Ga. 150~c	Call for Availability
	242825	Wire (14 Ga. 150 C Red)	Call for Availability
	242831	Wire (14 Ga. 200 C Red)	$234.50 Special Order
	242826	Wire, White 14 Ga. 150~c	Call for Availability
	242827	Wire (14 Ga. 150 C Yellow)	$43.50 Special Order
	LIT3147422	Guide, Use & Care	Call for Availability
	LIT3148046	Tech Sheet	Call for Availability
	LIT311509	Instructions, Installation	Call for Availability
	LIT884310	List, Parts	Call for Availability
	LIT313358	Book, Cooking Guide	Call for Availability
