Whirlpool RB275PXK0 Parts List

Popular Searches: (Click to search)    broil  channel  clip  arm  bulb  door  oven  screw  spring  therm  unit


Select a Diagram

02 - Control Panel

03 - Upper Oven

04 - Lower Oven

05 - Lower Oven Door , Lit/optional

06 - Upper Oven Door

07 - Wiring Harness

Select Diagram ... 02 - Control Panel 03 - Upper Oven 04 - Lower Oven 05 - Lower Oven Door , Lit/optional 06 - Upper Oven Door 07 - Wiring Harness

02 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	310829	End Cap (r.h.)	Call for Availability
	310828	End Cap (l.h.)	Call for Availability
2	310832	End Trim, Vent (left Side)	Call for Availability
	310833	End Trim, Vent (right Side)	Call for Availability
3	312447	Door, Vent	Call for Availability
4	486146	Screw (2)	$8.70 Special Order
	311190	Trim, Bottom	Call for Availability
5	486146	Screw (2)	$8.70 Special Order
	311188	Trim, Center	Call for Availability
6	313868	Rail, Top	Call for Availability
	WP488627	Screw (2) (Replaces: 342055)	$4.60  In-Stock Retail: $4.47
7	310842	Channel, Rubber (2)	Call for Availability
8	3148047	Control Panel, Glass	Call for Availability
9	310823	Retainer, Glass (4)	Call for Availability
10	98520	Screw (4)	$4.40 Special Order
	310720	Bracket, Control Panel (2)	Call for Availability
11	330500	Control Bracket	Call for Availability
12	WP98997	Clip	$7.00 Special Order
	WP313808	Screw, 6-32 X 9/32 (2)	$4.80 Special Order
	313856	Thermostat, Oven Pyro	$160.10 Special Order
13	311802	Indicator Light (4)	Call for Availability
14	WP486579	Screw, 8-32 X 1/4 (2)	$4.60 Special Order
	310006	Selector Switch	$67.70 Special Order
15	311479	Thermostat, Oven Continuous Clean	Call for Availability
16	WP313808	Screw, 6-32 X 1/4 (2)	$4.80 Special Order
	311492	Bracket, Thermostat	Call for Availability
	680337	Screw (4)	$4.00 Special Order
17	312796	Lockwasher	Call for Availability
	WP8189867	Switch, Oven Light	$32.70 Special Order

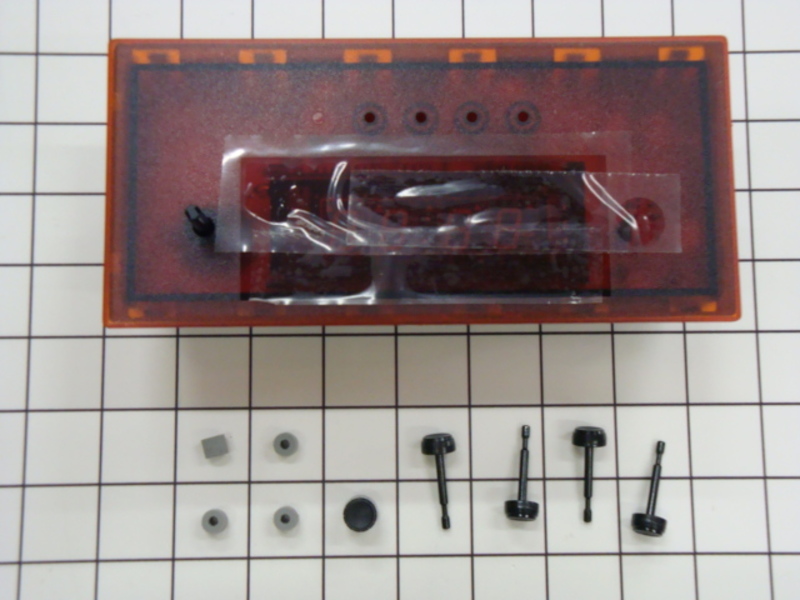

18	8149809	Timer, Digital (Replaces: 314128)	Call for Availability
19	311263	Seal, Top Rail	Call for Availability
20	98520	Screw, 8a X 5/16 (2)	$4.40 Special Order
	313864	Bracket, Timer	Call for Availability
21	311066	Escutcheon, Thermostat	Call for Availability
22	WP311068	Escutcheon, Selector Switch	$35.60 Special Order
23	311067	Escutcheon, Thermostat - Lower Oven	Call for Availability
	488620	Screw, 8 X 1/4	$4.00 Special Order
24	WP3150371	Knob, Control (3) (Replaces: 310834)	$12.90  In-Stock Retail: $12.21
25	313030	Bezel Switch (1)	Call for Availability
26	313958	Knob, Timer (3)	Call for Availability
27	WP308605	Strain Relief (3)	$7.10 Special Order
	98520	Screw	$4.40 Special Order
31	855930	Clip, Tube	$8.60 Special Order
	855930	Clip, Tube	$8.60 Special Order
32	313316	Seal, Backguard	Call for Availability
33	314129	Bracket, Timer	Call for Availability
	98520	Screw, 8a X 5/16 (2)	$4.40 Special Order
34	313523	Knob, Timer	$10.90 Special Order
