Whirlpool RB270PXYB2 Parts List

Popular Searches: (Click to search)    arm  broil  bulb  channel  clip  door  glass  heat  inner  outer  oven  screw  sensor  spring  therm  unit


Select a Diagram

01 - Control Panel, Literature

02 - Upper Oven

03 - Lower Oven

04 - Lower Oven Door, Optional

05 - Upper Oven Door

06 - Wiring Harness

Select Diagram ... 01 - Control Panel, Literature 02 - Upper Oven 03 - Lower Oven 04 - Lower Oven Door, Optional 05 - Upper Oven Door 06 - Wiring Harness

01 - Control Panel, Literature   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	3148622	End Cap (right Side)	Call for Availability
	3148621	End Cap (left Side)	Call for Availability
2	3148624	Trim, Top	$41.50 Special Order
	WP488627	Screw (2) (Replaces: 342055)	$4.40  In-Stock Retail: $4.22
3	3183578	Trim, Center (white Model)	Call for Availability
	3183577	Trim, Center (black Model)	Call for Availability
	98520	Trim, Center (screw (2))	$4.40 Special Order
4	3148698	End Trim (vent Door) Left Hand (black Model)	$13.10 Special Order
	3148697	End Trim (vent Door) Left Hand (black Model)	$13.10 Special Order
	3148471	End Trim (vent Door) Left Hand (white Model Right Hand)	$13.10 Special Order
	3148472	End Trim (vent Door) Left Hand (white Model)	$13.10 Special Order
5	3183505	Door, Vent (black Model)	Call for Availability
	3183506	Door, Vent (white Model)	Call for Availability
6	3148618	Trim, Bottom	Call for Availability
	486146	Screw (2)	$8.20 Special Order
7	3182918	Control Panel (white Model)	Call for Availability
	98520	Control Panel (screw (4))	$4.40 Special Order
	3182917	Control Panel (black Model)	Call for Availability
8	3183500	Bracket, Stiffener	Call for Availability
	311773	Screw	Call for Availability

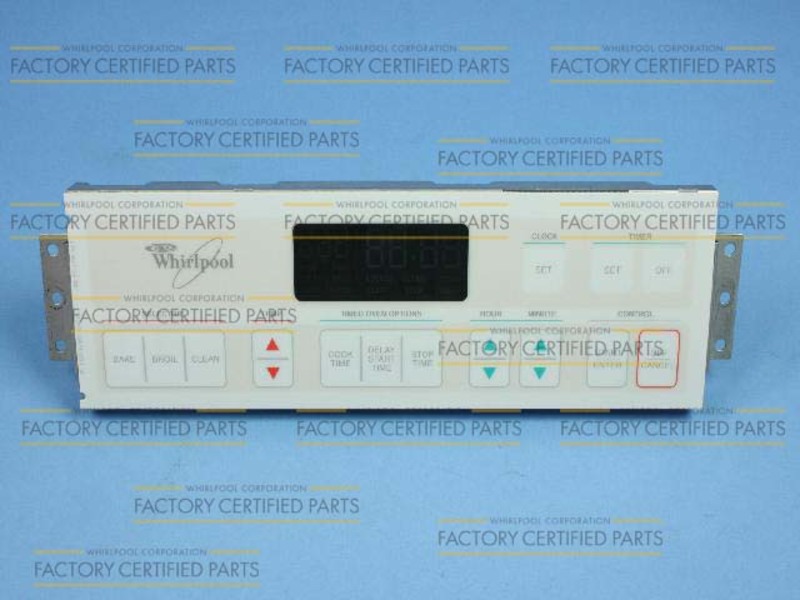

9	3169259	Electronic Timer (white Model) (Replaces: 3169257)	$249.00 Special Order
	3169258	Electronic Timer (black Model)	$240.60 Special Order
	98520	Electronic Timer (screw (4))	$4.40 Special Order
10	3182718	Switch, Rocker (white Model)	$27.70 Special Order
	3182717	Switch, Rocker (black Model)	$27.70 Special Order
11	3149142	Shield, Air	$5.70 Special Order
	98520	Screw	$4.40 Special Order
12	314031	Light, Indicator	$43.90 Special Order
13	313101	Lens, Amber	Call for Availability
14	3169303	Thermostat	$133.00 Special Order
	3178002	Screw (2)	Call for Availability
15	WP486579	Screw (2)	$4.40 Special Order
	3183583	Switch, Selector	$55.60 Special Order
16	3183106	Knob, Thermostat (white Model)	$26.70 Special Order
	3183106	Knob, Thermostat (black Model)	$26.70 Special Order

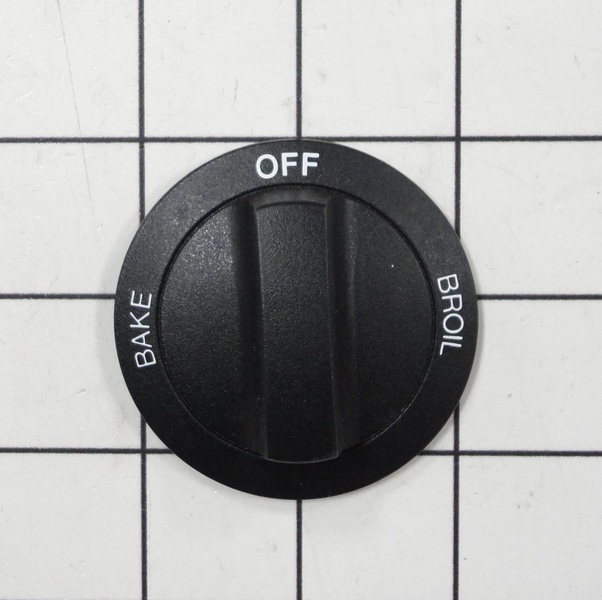

17	3183109	Knob Selector (black Model)	$27.10 Special Order
	3183109	Knob Selector (white Model)	$27.10 Special Order
18	308609	Strain, Relief	Call for Availability
	LIT3184116	Tech Sheet	Call for Availability
	LIT3183635	Installation Instructions	Call for Availability
	LIT3182871	Use & Care Guide	Call for Availability
