04 - Control Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	71002039	End Cap (lt-wht) (Series: 01)	Call for Availability
	71002038	End Cap (rt-wht) (Series: 01)	Call for Availability
	WP90767	Screw (Series: 10)	$4.80  In-Stock Retail: $4.59
	WP12990527	Screw (Series: 01)	$4.80  In-Stock Retail: $4.59
2	71002091	Tape, Dbl. Sided (blk) (Series: 01)	$4.40 Special Order
	WP71002310	Switch, Membrane (wht) (Series: 01)	$213.50 Special Order
3	WP71001799	Clock (Series: 01) (Replaces: 71001799)	$286.20  In-Stock Retail: $279.17
	WP12990527	Screw (Series: 01)	$4.80  In-Stock Retail: $4.59

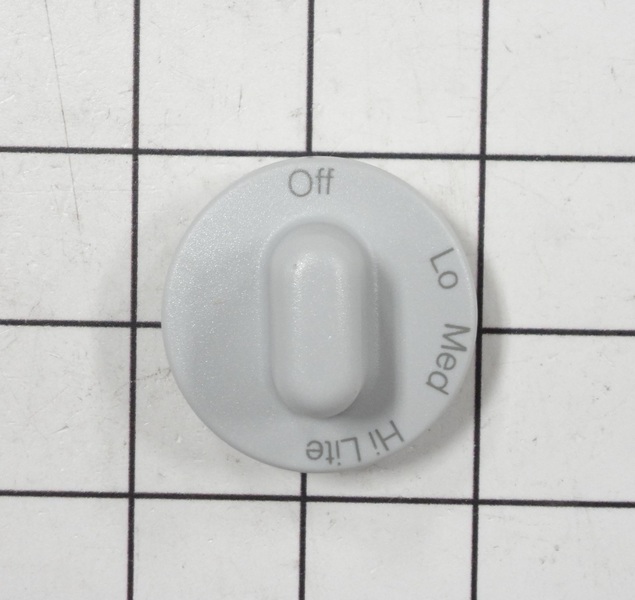

4	71002312	Knob, Valve (gry) (Series: 01)	$15.20 Special Order

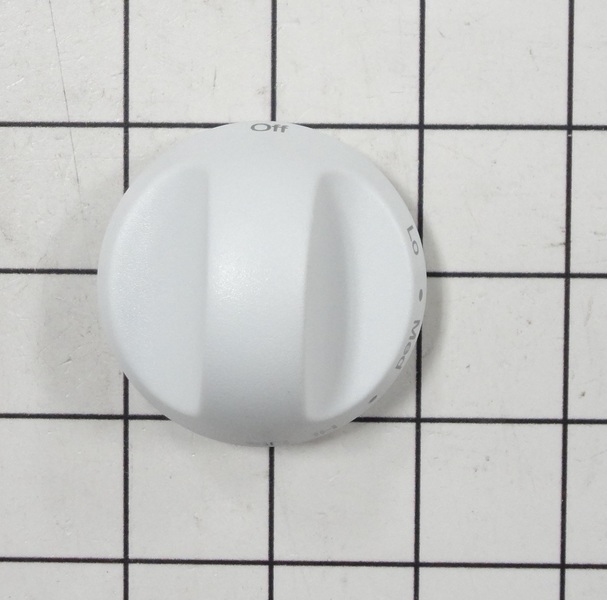

	WP71003058	Knob, Valve (wht) (Series: 16)	$29.10 Special Order
5	71002658	Screw (wht) (Series: 01)	$4.40 Special Order
6	71002043	Support, Control Panel (Series: 01)	$2.70 Special Order
7	71003017	Trim, Control Panel (wht) (Series: 17)	Call for Availability
	71002045	Trim, Control Panel (wht) (Series: 01)	Call for Availability
11	71002051	Harness, Cooling Fan (Series: 01)	$4.40 Special Order
	71003030	Harness, Hi-limit (Series: 01)	$9.60 Special Order
	71002117	Harness, Convect (Series: 01)	$4.40 Special Order
	71002970	Harness, Wire (main) (Series: 01)	Call for Availability
	71002049	Harness, Supply (j1) (Series: 01)	$31.10 Special Order
	71003232	Harness, Control (j2) (Series: 01)	$42.30 Special Order
	12001506	Harness, Door Lock (Series: 01)	$53.20 Special Order
	71002052	Harness, Down Draft (j4) (Series: 01)	$4.40 Special Order
	71002053	Harness, Oven Sensor (j10) (Series: 01)	$61.00 Special Order
	71002054	Harness, Infinite (Series: 01)	$14.40 Special Order
13	71003508	Cookbook (Series: 01)	Call for Availability
	71002475	Manual, Use & Care (Series: 01)	Call for Availability
	16010191	Manual, Service (Series: 01)	Call for Availability
14	16000326	Guide, Quick Ref - Jenn-air (Series: 01)	$14.40 Special Order
