Whirlpool MH8150XJQ1 Parts List

Popular Searches: (Click to search) capacitor charcoal door driver filter grille handle interlock lamp magnetron micro plate rectifier screw support switch top turntable vent white

Select a Diagram

01 - Control Panel Parts

02 - Door Parts

03 - Interior And Ventilation Parts

04 - Air Flow Parts

05 - Magnetron And Turntable Parts

06 - Cabinet And Installation Parts

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	8184581	Motor, Stirrer (Replaces: 4393746)	$112.70 Special Order
2	8184633	Shaft, Stirrer (Replaces: 4393794)	$53.80 Special Order
3	8184633	Stirrer (Replaces: 4393748)	$53.80 Special Order
5	8184604	Cover, Inlet	$41.80 Special Order
6	W10315274	Hook, Rack (4) (Replaces: 4393849)	$30.80 In-Stock Retail: $29.99
7	4393291	Nail, Plastic	$4.40 Special Order
8	4393799	Turntable	$64.30 In-Stock Retail: $62.66
9	W11252182	Ring, Turntable (Replaces: 8184102)	$33.00 In-Stock Retail: $32.16
10	4393861	Wheel, Plastic	$3.90 In-Stock Retail: $3.80
11	W10435116	Driver, Turntable (Replaces: 8206228 8183949)	$22.90 In-Stock Retail: $22.33
12	W10642989	Motor, Turntable	$114.40 In-Stock Retail: $111.52
13	4393756	Cover, Terminal	$4.40 Special Order
14	W10245183	Magnetron (Replaces: 8184306)	$189.00 In-Stock Retail: $184.35

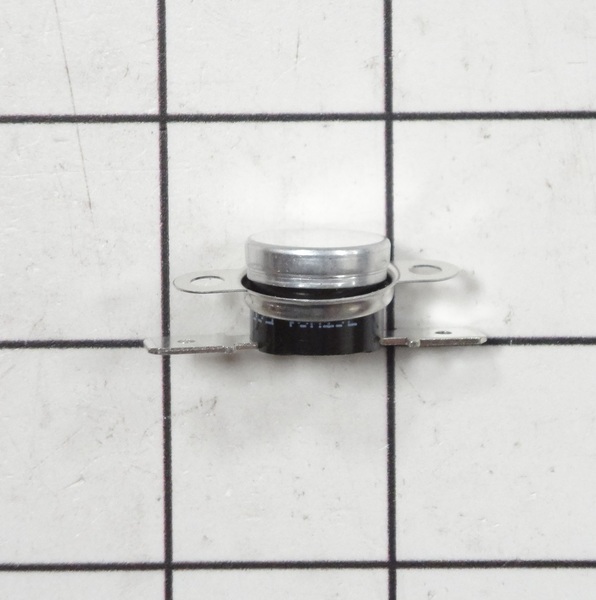

15	4393943	Thermostat	$4.50 Special Order
16	W10117062	Holder, Connector (l)	$4.40 Special Order
17	8169705	Holder, Connector (r)	$16.80 Special Order
18	4393838	Screw	$4.40 Special Order
19	8169474	Screw	$5.40 Special Order
20	WP8181660	Screw	$4.80 In-Stock Retail: $4.59
21	4393832	Screw	$8.70 Special Order
22	4393290	Bushing, Nail	$4.40 Special Order
23	WP8184485	Shield	$67.00 Special Order
24	8184582	Thermostat And Bracket	$16.00 Special Order
25	8184109	Spacer	$4.80 In-Stock Retail: $4.59
