Maytag 7MMGM0100VW0 Parts List

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  dryer  ignitor  kit  main  motor  panel  pilot  position  pulley  repair  roller  split  support  switch  terminal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8318272 Burner Assembly, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8318272 Burner Assembly, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10155425	Sheet, Cycle Feature	Call for Availability
	3406666	Wiring Diagram	Call for Availability
	W10118198	Installation Instructions	Call for Availability

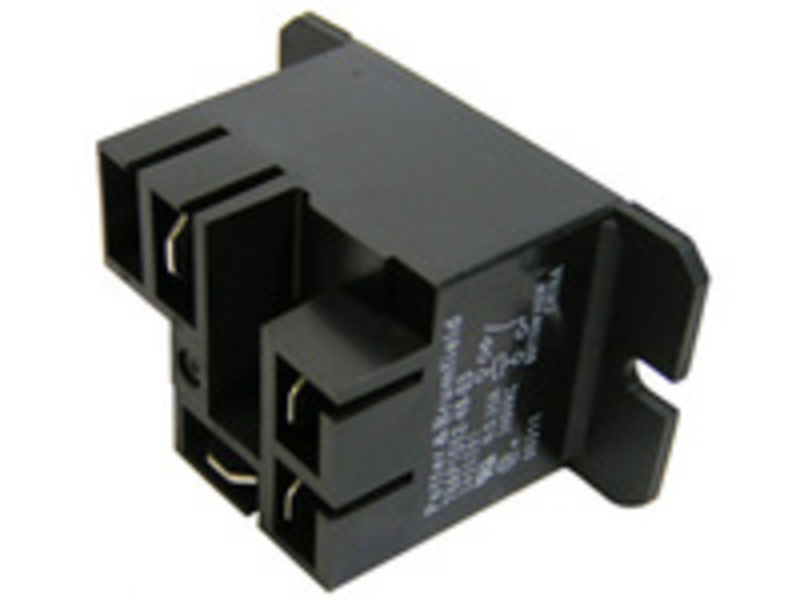

2	WP3405281	Power Relay (2) (Replaces: 3405281)	$30.60  In-Stock Retail: $29.80

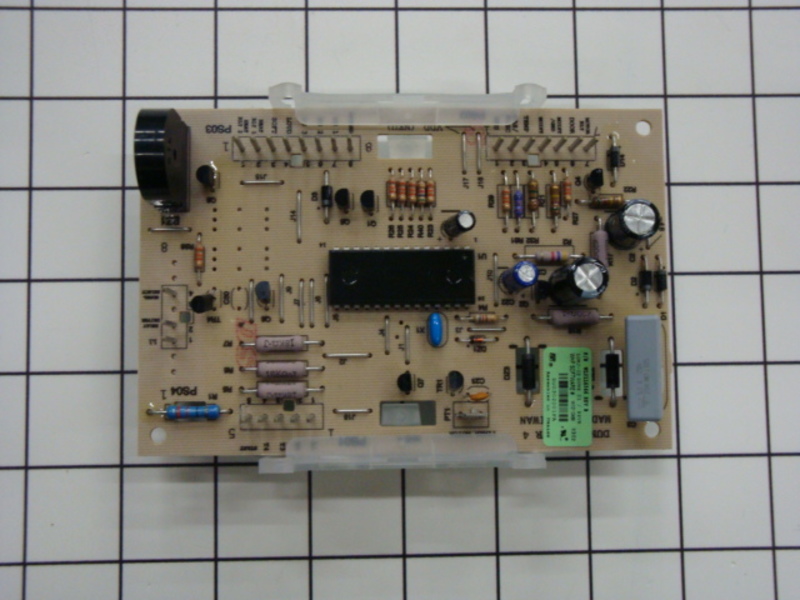

3	WPW10116566	Control Board (Replaces: W10116566)	Call for Availability
4	W10128464	Cap, End (l.h.)	$5.90 Special Order
5	717252	Plug, 2-way Terminal	$4.40 Special Order
6	W10103406	Panel, Rear Console	$83.00 Special Order

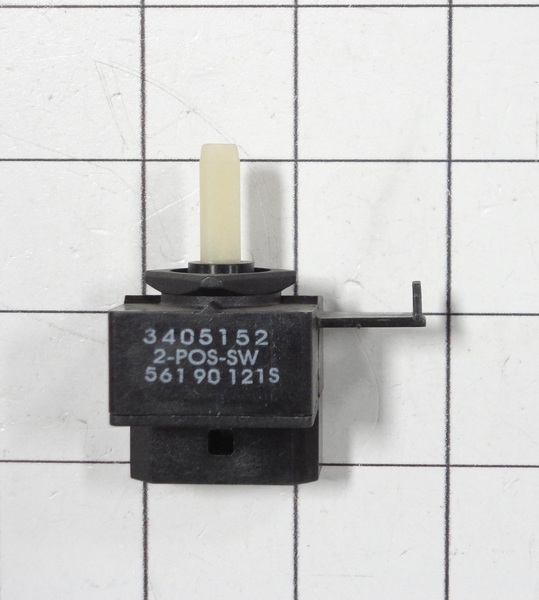

7	3405152	Switch, Wrinkle Guard	$87.50 Special Order
8	W10128463	Cap, End (r.h.)	$5.90 Special Order
9	WP693995	Screw, Hex Washer Head   (Replaces: 693995)	$4.80  In-Stock Retail: $4.59
10	WPW10717210	Screen, Lint (Replaces: W10641634 8559787)	$41.70  In-Stock Retail: $40.66
11	WP8536939	Clip Spring (Replaces: 8536939)	$4.80  In-Stock Retail: $4.59
12	3391249	Tie, Cable	$5.80 Special Order
13	W11693756	Screw, 8-18 X 5/8	$8.70 Special Order
14	3400859	Screw, Grounding	$8.20 Special Order
15	3395683	Connector, Motor	$36.20 Special Order
16	WP8563663	Top	$201.20 Special Order
17	WP681414	Screw, 10-16 X 1/2	$4.80 Special Order
18	W10816321	Knob, Control (3)	$36.20  In-Stock Retail: $35.29
19	WP3394427	Clip-harness	$4.80  In-Stock Retail: $4.59
20	351296	Receptacle	$4.40 Special Order

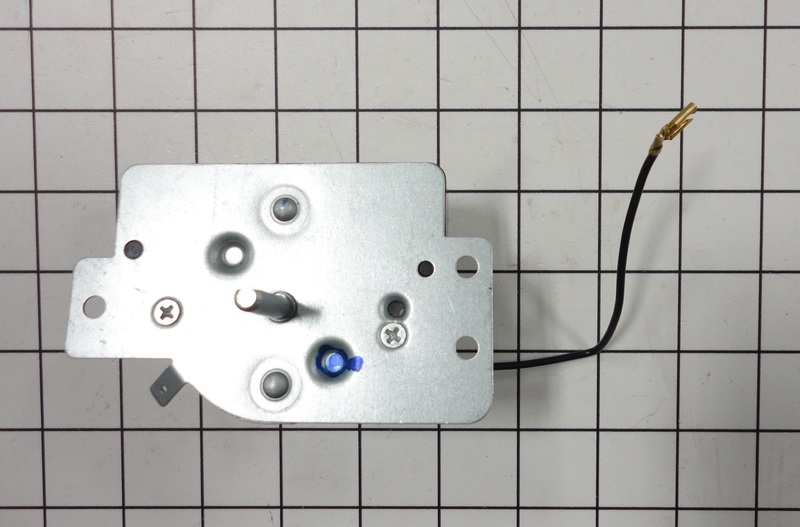

21	WP8299771	Timer Assembly 60 Hz. (Replaces: 8299771)	$216.70  In-Stock Retail: $211.41
22	8283281	Harness, Console	$175.60 Special Order
23	WP3388228	Screw, 6-20 X 3/8	$4.80 Special Order
24	3397269	Connector-timer	$17.90 Special Order
25	3956790	Knob, Push-to-start	$47.20 Special Order
26	WP3403499	Connector (2) Position Gas Valve	$4.50 Special Order
27	WP3403498	Connector, 3 Position (gas Valve)	$4.80 Special Order
28	3936150	Connector, 7-circuit	$57.80 Special Order
29	WP90767	Screw,8-18 X 5/16	$4.80  In-Stock Retail: $4.59
30	W10203949	Assembly, Badge (Replaces: W10112569)	$45.70 Special Order
31	8299900	Harness, Wiring	$182.80 Special Order
32	8299970	Switch, Temperature	$143.60 Special Order
33	3347243	Connector 6-circuit	$35.50 Special Order

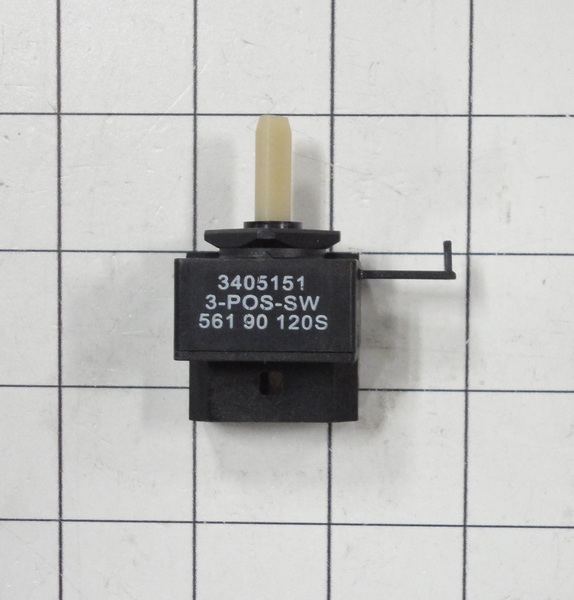

34	3405151	Switch, Signal	$143.20  In-Stock Retail: $139.70
35	351297	Plug, Harness	$5.50 Special Order
36	WP8312709	Clip-console (2)	$12.50  In-Stock Retail: $12.12
37	WP3977456	Switch, Push-to-start (Replaces: 3977456)	$22.80  In-Stock Retail: $22.24
38	8571409	Timer Knob Assembly	$28.90 Special Order
39	WP94614	Terminal (female)	$4.80 Special Order
40	8559772	Bracket, Control	$5.70 Special Order
41	W10155431	Panel, Control	$100.70 Special Order
42	3936144	Connector	$13.70 Special Order
