Maytag 7MMGE9959TB0 Parts List

Popular Searches: (Click to search)    assembly  belt  bracket  catch  coil  door  drive  fuse  idler  ignitor  main  paint  pilot  position  pulley  split  strike  terminal  thermal  white


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8576353 Burner Assembly

05 - Door Parts, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8576353 Burner Assembly 05 - Door Parts, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10115138	Use & Care Guide	Call for Availability
	W10115139	Tech Sheet	Call for Availability
	W10115137	Guide, Quick Start	Call for Availability
2	8519251	Top (white)	$27.80 Special Order
	W10192490	Top (black)	$135.60 Special Order
3	8299950	Harness, Main	$104.80 Special Order
4	W10098940	Panel, Console (includes Bezel, Light Indicators & Endcaps) (white)	Call for Availability
	W10098970	Panel, Console (includes Bezel, Light Indicators & Endcaps) (black)	$160.70 Special Order
5	WP3394427	Clip-harness	$4.80 Special Order
6	8519271	Bracket, Console	$38.10 Special Order
7	353424	Connector Sensor	$13.70 Special Order
8	WP94614	Terminal	$4.80 Special Order
9	3936144	Plug, Terminal	$13.70 Special Order
10	WP596797	Terminal	$4.80 Special Order
11	WP488729	Screw, 8-18 X 1/2	$4.80  In-Stock Retail: $4.59
12	WP488787	Screw, 8-18 X 1/2	$6.70  In-Stock Retail: $6.50
13	8542690	Bezel, Cycle	$13.70 Special Order
14	3936150	Connector, 7-circuit	$54.00 Special Order
15	3395683	Connector, Motor	$33.80 Special Order
16	8281225	Screw, 8-18 X 1/2	$4.40 Special Order
17	2203186	Connector, 5-circuit	$7.90 Special Order

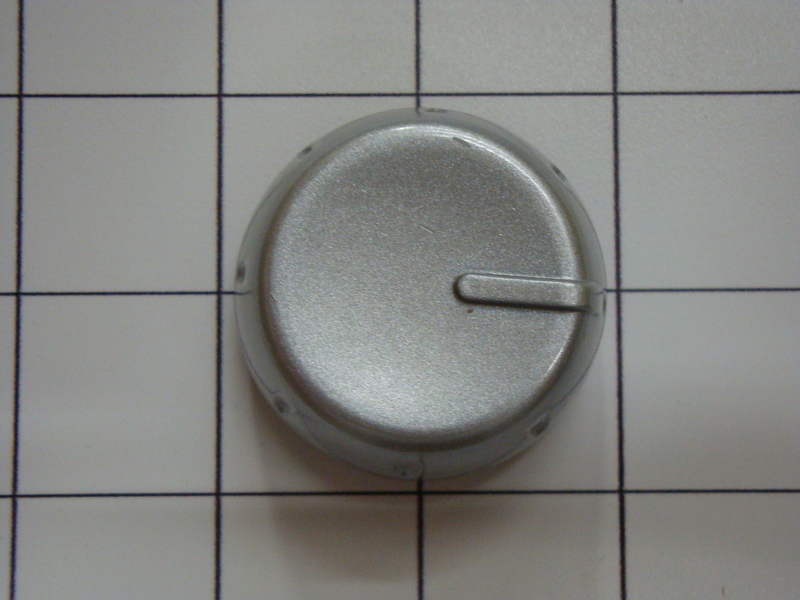

18	8580139	Knob, Assembly	$28.70 Special Order
19	8558455	User Interface (includes Illus. 28, 29 & 30)	Call for Availability
20	8562598	Endcap(lh) (white)	$16.70 Special Order
	8580135	Endcap (lh) (black)	$21.60 Special Order
21	8580134	Endcap (rh) (black)	$21.60 Special Order
	8562597	Endcap (rh) (white)	$16.70 Special Order
22	8542682	Light Indicator (status)	$31.60 Special Order
23	8542683	Light Indicator (cycle)	$31.60 Special Order
24	8542691	Lens, Display	$29.50 Special Order
25	8542684	Light Indicator (dryness Level)	$31.60 Special Order
26	8542685	Light Indicator (temperature)	$31.60 Special Order
27	8542686	Light Indicator (xcare/eoc)	$31.60 Special Order
28	8542717	Shaft, Cycle Selector	Call for Availability
29	8542716	Bearing, Knob	$30.30 Special Order
30	8542715	Spring, Knob	$34.90 Special Order
31	8562606	Pushbutton, (control) (silver (for White Model))	$60.40 Special Order
	8580140	Pushbutton, (control) (silver (for Black Model))	$58.80 Special Order
32	8579989	Pushbutton, (drytime) (silver)	$60.20 Special Order
	W10100390	Pushbutton, (drytime) (white)	$60.20 Special Order
33	8562604	Pushbutton, (dryness/temp) (white)	$53.30 Special Order
	8579991	Pushbutton, (dryness/temp) (silver)	$51.90 Special Order
34	8562605	Pushbutton, (xcare/eoc) (white)	$48.40 Special Order
	8579993	Pushbutton, (xcare/eoc) (silver)	$60.20 Special Order
35	8558454	Pushbutton, (start/cancel) (silver (for White Model))	$35.30 Special Order
	8579994	Pushbutton (start/cancel) (silver (for Black Model))	$58.80 Special Order
