Maytag 7MMGD6630TQ0 Parts List

Popular Searches: (Click to search)    91°  assembly  belt  coil  door  drive  dryer  fuse  ignitor  kit  main  motor  pilot  position  repair  roller  split  support  terminal  thermal


Select a Diagram

01 - Top And Console Parts

02 - Cabinet Parts

03 - Bulkhead Parts

04 - 8318272 Burner Assembly, Optional Parts (not Included)

Select Diagram ... 01 - Top And Console Parts 02 - Cabinet Parts 03 - Bulkhead Parts 04 - 8318272 Burner Assembly, Optional Parts (not Included)

01 - Top And Console Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10118199	Sheet, Cycle Feature	Call for Availability
	W10118198	Use & Care Guide	Call for Availability
	8576793	Wiring Diagram	Call for Availability
2	W10119078	Wire, Jumper Mini-buzzer	Call for Availability
3	WP694419	Buzzer, Mini   (Replaces: 694419)	$86.10  In-Stock Retail: $83.91
4	W10116403	Console & Shell Assembly (includes Items 8 & 30) (white/metallic)	$95.60 Special Order
	W10116404	Console & Shell Assembly (includes Items 8 & 30) (white)	$107.70 Special Order
5	717252	Plug, 2-way Terminal	$4.40 Special Order
6	W10112576	Panel, Rear Console	$60.50 Special Order
7	3405152	Switch, Wrinkle Gaurd	$87.50 Special Order
8	WP8312709	Clip-console (2)   (Replaces: 8312709)	$12.50  In-Stock Retail: $12.12
9	WP693995	Screw, Hex Washer Head   (Replaces: 693995)	$4.80 Special Order
10	WPW10717210	Screen, Lint (Replaces: W10641634 8565972)	$41.70  In-Stock Retail: $40.66
11	WP8536939	Clip Spring (Replaces: 8536939)	$4.80 Special Order
12	WP90767	Screw,8-18 X 5/16	$4.80  In-Stock Retail: $4.59
13	W11693756	Screw, 8-18 X 5/8	$8.70 Special Order
14	W10119077	Wire, Jumper Gaurd On/off	$4.40 Special Order
15	3395683	Connector, Motor	$36.20 Special Order
16	W10112597	Top	$131.60 Special Order
17	W10110031	Knob, Push-to-start	$30.90 Special Order
18	WPW10110029	Knob, Control (1)	$36.80 Special Order
19	WP3394427	Clip-harness	$4.80  In-Stock Retail: $4.59
20	3936144	Connector	$13.70 Special Order

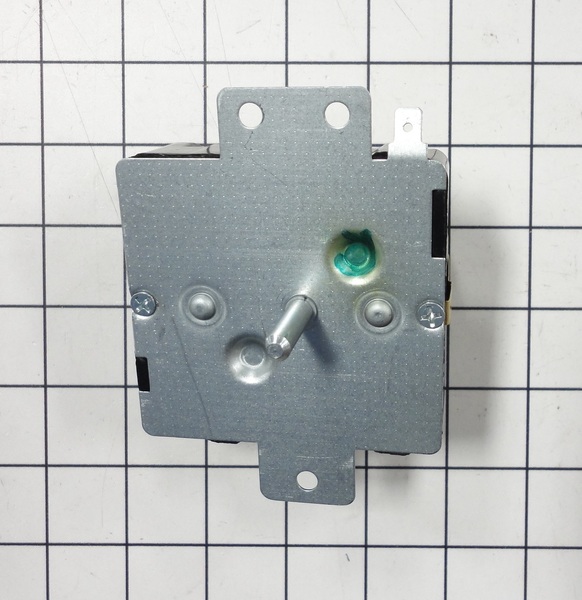

21	WP3976584	Timer Assembly (60 Hz.) (Replaces: 3976584)	$207.20  In-Stock Retail: $202.06
22	3397269	Connector-timer	$17.90 Special Order
23	3401144	Connector (pts) Relay	$8.30 Special Order
24	WP3403499	Connector (2) Position Gas Valve	$4.50 Special Order
25	WP3403498	Connector, 3 Position (gas Valve)	$4.80 Special Order
26	W10118608	Seal-harness	$30.30 Special Order
27	W10156101	Switch, Push-to-start	$37.30 Special Order
28	WPW10110030	Timer-knob Assembly (Replaces: W10110030)	$39.40 Special Order
29	WP94614	Terminal (female)	$4.80 Special Order
30	W10203949	Badge Assembly (Replaces: W10112569)	$45.70 Special Order
31	W10119079	Harness, Wiring	$156.80 Special Order
32	3347243	Connector 6-circuit	$35.50 Special Order
33	8565981	Bracket, Harness	$33.90 Special Order
34	W11693756	Screw, 8-18 X 3/4	$8.70 Special Order
35	W10112267	Foam-seal Control Bracket	$62.20 Special Order
