06 - Top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	74001538	Panel, Upper Front (wht) (Series: 10)	Call for Availability
2	WP7403P239-60	Switch, Infinite (lrg Element) (Series: 10) (Replaces: 7403P239-60)	$33.50  In-Stock Retail: $49.21
	WP7101P309-60	Screw (Series: 10)	$4.80 Special Order
	WP7403P238-60	Switch, Infinite (sml Element) (Series: 10) (Replaces: 7403P238-60)	$40.00  In-Stock Retail: $56.27
3	W10852510	Light, Indicator (Series: 10)   (Replaces: 7407P102-60)	$78.40 Special Order
4	W11690131	Lens, Indicator Light (Series: 10)	$4.60 Special Order
5	7403P314-60	Switch, Rocker (wht) (Series: 10)	$31.80 Special Order

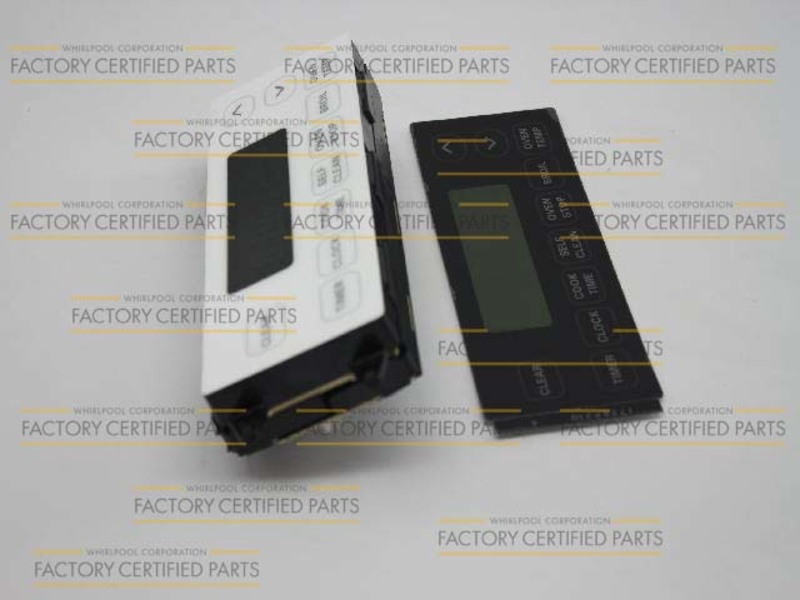

6	12001607	Clock (wht) (Series: 10)	$240.60 Special Order
	3801F349-51	Bracket, Clock (Series: 10)	Call for Availability
7	3801F312-45	Bracket, Indicator Light (Series: 10)	Call for Availability
8	7731P081-60	Knob, Switch (wht) (Series: 10)	$16.60 Special Order
9	7740P023-60	Bezel, Knob (wht) (Series: 10)	$18.10 Special Order
10	WP7711P492-60	Knob, Clock (wht) (Series: 10)	$8.90  In-Stock Retail: $8.61
11	7112P102-60	Clip, Speed (Series: 10)	$4.40 Special Order
	74004827	Clip, Top Locking (Series: 10)	$4.40 Special Order
12	7407P098-60	Light, Indicator (Series: 10)	Call for Availability
13	5706M105-81	Top Assy, Wht W/wht Glass (Series: 10)	Call for Availability
14	12500041	Limiter Kit (6``) (Series: 10)	Call for Availability
	W10823704	Element W/limiter (6``) (Series: 12) (Replaces: 12500039 74001011)	$210.80  In-Stock Retail: $200.72
	W10823704	Element W/receptacle (6``) (Series: 10)	$210.80  In-Stock Retail: $200.72
15	W10823707	Element W/receptacle (8``) (Series: 10)	$206.30 Special Order
	W10823707	Element W/limiter (8``) (Series: 12) (Replaces: 12500038 74001012)	$206.30 Special Order
	12500040	Limiter Kit (8``) (Series: 10)	Call for Availability
16	3807F390-45	Support, Element (Series: 10)	Call for Availability
17	8004P015-60	Support, Element (Series: 10)	Call for Availability
18	WP59002061	Screw (6abx38-zn) (Series: 10)	$4.80 Special Order
19	12001323	Harness, Cooktop To Switch (Series: 10)	$105.80 Special Order
	74001583	Harness, Clock/relay (Series: 10)	$20.30 Special Order
	74001656	Harness, Wire Front Panel (Series: 10)	Call for Availability
	5170P228-60	Harness, Sensor & Lock (Series: 10)	$25.10 Special Order
20	8112P105-60	Manual, Use & Care-insert (Series: 10)	Call for Availability
	74001539	Manual, Use & Care (Series: 10)	Call for Availability
21	16000329	Guide, Quick Ref. - Magic Chef (Series: 10)	$41.00 Special Order
