Whirlpool LSC8244EZ1 Parts List

Popular Searches: (Click to search)    agitator  brake  clutch  complete  coupling  dog  drive  gearcase  hose  isolation  lid  mixing  motor  paint  pump  switch  tube  valve  water  white


Select a Diagram

01 - Top And Cabinet, Literature

02 - Controls And Rear Panel

03 - Agitator, Basket And Tub

04 - Brake, Clutch, Gearcase, Motor And Pump

05 - Machine Base

06 - Wiring Harness

07 - Water System

08 - Brake And Drive Tube

09 - Gearcase

10 - Miscellaneous, Optional

Select Diagram ... 01 - Top And Cabinet, Literature 02 - Controls And Rear Panel 03 - Agitator, Basket And Tub 04 - Brake, Clutch, Gearcase, Motor And Pump 05 - Machine Base 06 - Wiring Harness 07 - Water System 08 - Brake And Drive Tube 09 - Gearcase 10 - Miscellaneous, Optional

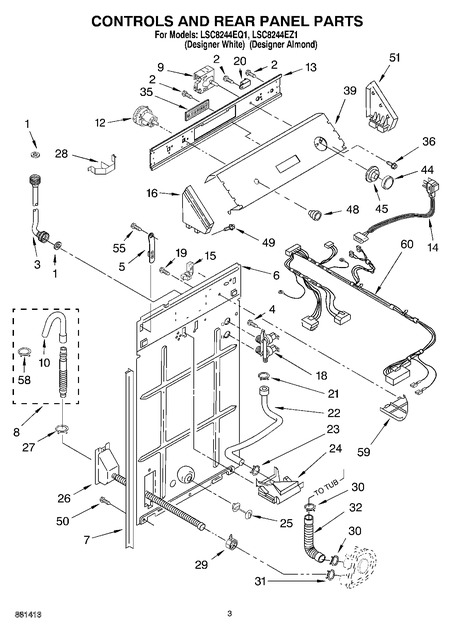

02 - Controls And Rear Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP16123	Washer, Water Inlet Hose (4) 1-1/16 X 5/8	$4.80 Special Order
2	WP90767	Screw, 8-18 X 3/8   (Replaces: 90767)	$4.80  In-Stock Retail: $4.59
3	WP89503	Hose, Water Inlet (2) (blue Coupler)	$7.80  In-Stock Retail: $11.98
	WP89503	Hose, Water Inlet (2) (red Coupler)	$7.80  In-Stock Retail: $11.98
4	WP9740848	Screw, 8-18 X 3/8	$4.80 Special Order
5	WP8568314	Strap, Console (2)	$4.80 Special Order
6	WP3357978	Panel, Rear	$217.30 Special Order
7	WP62747	Pad, Rear Panel	$15.30 Special Order
8	285666	Hose, Drain (9 Ft.) (not Included)	$56.40 Special Order
	285664	Hose, Drain (4 Ft.) (Replaces: 3951609)	$31.80  In-Stock Retail: $30.98
	285702	Extension, Drain Hose (21 Inches) (not Included)	$33.70  In-Stock Retail: $32.79
9	WP3948171	Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: 3948171)	Call for Availability
10	WP3357027	Nozzle-drain Hose (Replaces: 3357027)	$57.20 Special Order
12	W10337780	Switch, Water Level (Replaces: 3366847)	$59.60  In-Stock Retail: $58.14
13	3950194	Bracket, Control	$33.40 Special Order
14	W10820044	Cord, Power	$96.20 Special Order
15	285777	Strain Relief, Power Cord	$4.50 Special Order
16	285846	Cap, End (l.h.) (white) (Replaces: 3358528)	$42.20 Special Order
	285848	Cap, End (l.h.) (almond) (Replaces: 3358529)	Call for Availability
18	285805	Valve, Water Mixing (Replaces: 3952164)	$33.70  In-Stock Retail: $33.64
19	WP3351614	Screw, 10-24 X 3/8	$4.80 Special Order
20	WP694419	Buzzer, Mini   (Replaces: 694419)	$86.10  In-Stock Retail: $83.91
21	WP596669	Clamp, Hose	$4.80  In-Stock Retail: $4.59
22	WP3357328	Hose, Vacuum Break (Replaces: 3357328)	$13.30  In-Stock Retail: $12.96
23	WP596669	Clamp, Hose	$4.80  In-Stock Retail: $4.59
24	WP3360977	Break, Vacuum (Replaces: 387606)	$52.20  In-Stock Retail: $50.88
25	WP8519200	Support, Rear Panel (Replaces: 8519200)	$11.70 Special Order
26	WPW10358149	Anchored Drain Hose Assembly (Replaces: 8317940)	$19.10  In-Stock Retail: $18.58
27	WP356138	Clamp, Hose	$4.80 Special Order
28	8055003	Clip, Harness & Pressure Hose	$46.50 Special Order
29	3976395	Clamp, Hose	$7.70 Special Order
30	WP616099	Clamp, Hose	$4.40 Special Order
31	WP285655	Clamp, Hose	$4.80  In-Stock Retail: $4.59
32	285871	Hose, Pump To Tub (Replaces: 3951449)	$14.40  In-Stock Retail: $14.03
35	3948147	Switch, Touch-pad (8) (white)	$172.00 Special Order
	3948148	Switch, Touch-pad (8) (almond)	$115.20 Special Order
36	WP356418	Screw, Timer Mounting	$4.80 Special Order
39	3948298	Panel, Console (almond)	Call for Availability
	3948297	Panel, Console (white)	Call for Availability
44	WP3364293	Knob, Timer (white) (Replaces: WP3364291 3364291)	$35.90  In-Stock Retail: $35.02
	WP3364293	Knob, Timer (almond)	$35.90  In-Stock Retail: $35.02
45	280193	Dial, Timer (almond) (Replaces: 3951054)	$39.80 Special Order
	8274331	Dial, Timer (white)   (Replaces: 3951053)	Call for Availability
48	3950760	Knob, Control (almond)	$33.30 Special Order
	WP3957796	Knob, Control (white) (Replaces: 3950759)	$37.00 Special Order
49	WP388326	Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326)	$4.80  In-Stock Retail: $4.59
50	WP3390631	Screw, 10-16 X 3/8	$4.80  In-Stock Retail: $4.59
51	285848	Cap, End (r.h.) (almond)	$28.00 Special Order
	3358513	Cap, End (r.h.) (white)	$4.40 Special Order
55	WP488729	Screw	$4.80  In-Stock Retail: $4.59
58	WP3357331	Clamp, Drain Hose	$4.80 Special Order
59	8539874	Sheild, Suds	$4.50 Special Order
60	3952705	Harness, Wiring	$95.10 Special Order
