Whirlpool LGL8858EQ1 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assembly  belt  coil  door  drive  drum  fuse  ignitor  main  paint  pilot  position  roller  split  strike  support  switch  terminal  thermal  white


Select a Diagram

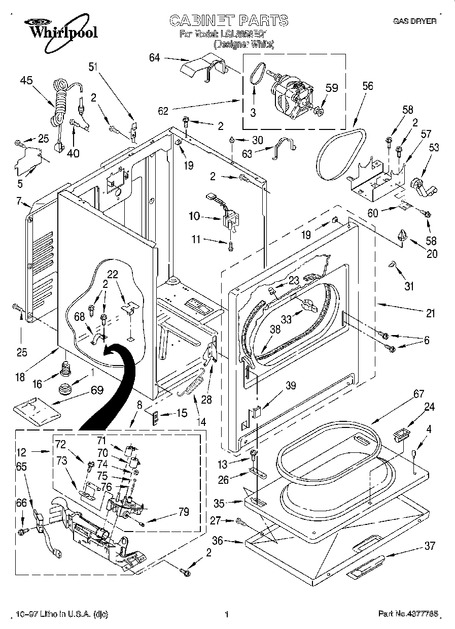

01 - Cabinet   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 WP3391943 WP3391943 Boot, Foot
(Replaces: 3391943) 		$4.80
 In-Stock
Retail: $4.59
2 WP681414 Screw,10-16 X 1/2 $4.80
Special Order
3 WP3405160 Belt, Drive (blower Wheel)   (Replaces: 3405160) $20.20
 In-Stock
Retail: $19.64
4 238614 Bumper $43.80
Special Order
5 W11736322 Cover, Block   (Replaces: 3396794 3396795) $38.50
Special Order
6 486146 Screw, 10-32 X 1/2 $8.70
Special Order
7 280043 280043 Panel, Rear $202.90
Special Order
8 279536 Burner Assembly, 60 Hz. (see Pages 4 For Further Burner Breakdown) $256.80
Special Order
10 WP3406107 WP3406107 Door, Switch Assembly
(Replaces: 3406101) 		$21.20
 In-Stock
Retail: $21.19
11 WP3395530 WP3395530 Screw, 6-20 X 7/8 $4.80
Special Order
12 279923 279923 Valve, Gas 60 Hz. (complete) $178.10
 In-Stock
Retail: $178.04
13 WP308685 WP308685 Screw,10-16 X 1/2
(Replaces: 3357011) 		$4.80
 In-Stock
Retail: $4.59
14 WPW10041960 WPW10041960 Spring, Door (2) $25.00
Special Order
15 W10854425 W10854425 Clip, Front Panel (2)
(Replaces: 3394083) 		$9.70
 In-Stock
Retail: $9.38
16 W10823505 W10823505 Foot - Optional (extended Length Package Of 2 ) (not Included)
(Replaces: 279810) 		$11.50
 In-Stock
Retail: $11.18
49621 49621 Foot, Dryer
(Replaces: 3392100) 		$4.40
 In-Stock
Retail: $4.20
18 8533643 8533643 Cabinet (includes Illus. Nos. 5, 7, 15, 16 & 57) (white) $264.70
Special Order
19 WP98234 WP98234 Clip, Ground
(Replaces: 98234) 		$7.00
 In-Stock
Retail: $6.82
20 WP18776 WP18776 Lock, Front Top (2)
(Replaces: 18776) 		$7.10
 In-Stock
Retail: $6.84
21 279740 279740 Panel Front (white)
(Replaces: 3395197) 		$209.80
 In-Stock
Retail: $204.63
22 3404283 Plug, Cabinet (2) $7.50
Special Order
23 279220 279220 Clip, Felt Pad (3) $11.60
Special Order
24 279570 279570 Catch, Door Assembly $13.50
 In-Stock
Retail: $13.45
25 WP693995 Screw, Hex Head   (Replaces: 693995) $4.80
 In-Stock
Retail: $4.59
26 W11252547 Clip, Hinge (2) $13.70
 In-Stock
Retail: $13.35
27 WP694091 WP694091 Screw (6) $4.80
 In-Stock
Retail: $4.59
28 WP8066056 WP8066056 Hinge, R.h. $62.50
Special Order
WP8066057 WP8066057 Hinge, L.h.
(Replaces: 8066057 692501) 		$63.10
 In-Stock
Retail: $61.49
30 98669 98669 Locator, Top (2) $8.20
Special Order
31 WP3404413 WP3404413 Plug-hole (white) $4.80
Special Order
33 279570 279570 Strike, Door
(Replaces: 696144) 		$13.50
 In-Stock
Retail: $13.45
35 WP695737 WP695737 Door, Rear $154.70
Special Order
36 WP3393549 WP3393549 Door, Front (white) $104.50
Special Order
37 WP348721 WP348721 Handle, Door (white)
(Replaces: 690270) 		$52.00
Special Order
38 W11035878 Seal & Bearing Assembly   (Replaces: 3406129) $75.00
 In-Stock
Retail: $73.10
39 WP3394975 WP3394975 Plug, Front Panel (white)
(Replaces: 3394975) 		Call for Availability
40 W10850756 W10850756 Screw, 10-16 X 1/2 $4.80
 In-Stock
Retail: $4.59
45 W11222083 W11222083 Cord, Power
(Replaces: 3392081 WP3401402 344020) 		$84.10
Special Order
51 WP8066217 WP8066217 Hinge, Top (2) $4.80
 In-Stock
Retail: $4.59
53 WP691366 WP691366 Idler & Pulley Assembly
(Replaces: 691366) 		$15.80
 In-Stock
Retail: $15.73
56 341241 341241 Belt, Drive (drum)
(Replaces: 660996) 		$15.00
 In-Stock
Retail: $14.95
57 3406228 Base, Motor $23.90
Special Order
58 3400500 3400500 Bolt, 5/16-18 X 3/4 $8.70
Special Order
59 WP8066184 WP8066184 Pulley 60 Hz $36.90
 In-Stock
Retail: $35.92
60 3401805 Bracket, Idler $58.70
Special Order
62 WPW10396039 WPW10396039 Motor Assembly 60 Hz.
(Replaces: 3405478) 		$213.10
Special Order
63 WP660658 WP660658 Clamp, Motor (1)
(Replaces: 660658) 		$4.80
Special Order
64 3401800 Belt, Shield Assembly $10.30
Special Order
65 279311 279311 Ignitor
(Replaces: 686590) 		$41.20
 In-Stock
Retail: $41.18
66 WPW10366705 Lock Screw & Washer (8-32 X 5/8) $4.80
Special Order
67 W10906683 W10906683 Seal, Door
(Replaces: 3390731) 		$80.50
 In-Stock
Retail: $78.47
68 341029 Clamp, Pipe $8.00
Special Order
69 49572A 49572A Kit, Conversion Type 1, 2 & 3 To Type 4 (lpg) $28.70
 In-Stock
Retail: $27.29
70 279834 279834 Coil, 60 Hz. (split) (3 Terminal) (pilot Position)
(Replaces: 694539) 		$29.95
 In-Stock
Retail: $21.80
71 279834 279834 Coil, 60 Hz. (2 Terminal) (main)
(Replaces: 694540) 		$29.95
 In-Stock
Retail: $21.80
72 694421 Screw, Bracket Mounting (8-32 X 1/2) $8.00
Special Order
73 694538 Bracket, Coil $50.30
Special Order
74 WP694424 WP694424 Leak Limiter
(Replaces: 694424) 		$23.50
 In-Stock
Retail: $22.83
75 WP694423 WP694423 Screw, Regulator Adjustment
(Replaces: 694423) 		$4.80
Special Order
76 WP694422 WP694422 Spring, Regulator
(Replaces: 694422) 		$16.50
Special Order
79 W10295523 Plug, Pipe $15.30
Special Order
