Maytag SDG3606AWW Parts List

Popular Searches: (Click to search) assembly belt bracket coil cylinder door dryer fuse gas glide igniter kit lint motor roller seal switch tan thermal valve

Select a Diagram

01 - Cabinet & Base

02 - Control Panel

03 - Door, Front, Access & Top Panels

04 - Front Bulkhead, Air Duct & Cylinder

05 - Gas Valve & Igniter

06 - Gas Valve & Igniter (series 16)

07 - Rear Bulkhead

08 - Rear Bulkhead, Roller & Air Duct (gas)

09 - Supplemental Information

10 - Wiring Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	37001103	Facia (Series: 10)	$39.70 Special Order

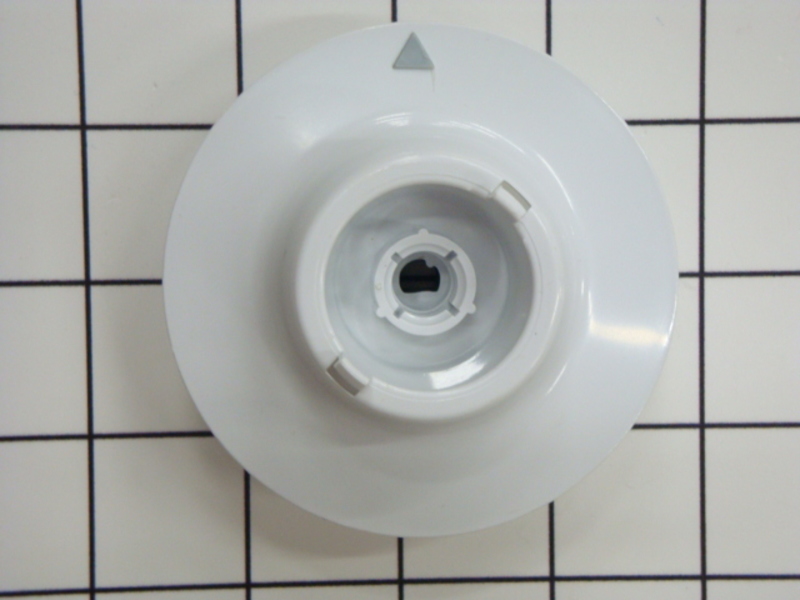

2	37001067	Dial, Timer (Series: 10)	Call for Availability

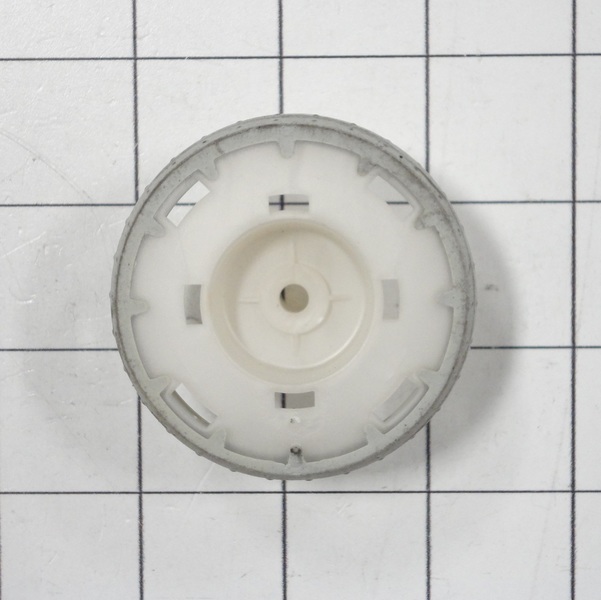

3	37001068	Knob, Timer (gray) (Series: 10)	$5.20 Special Order

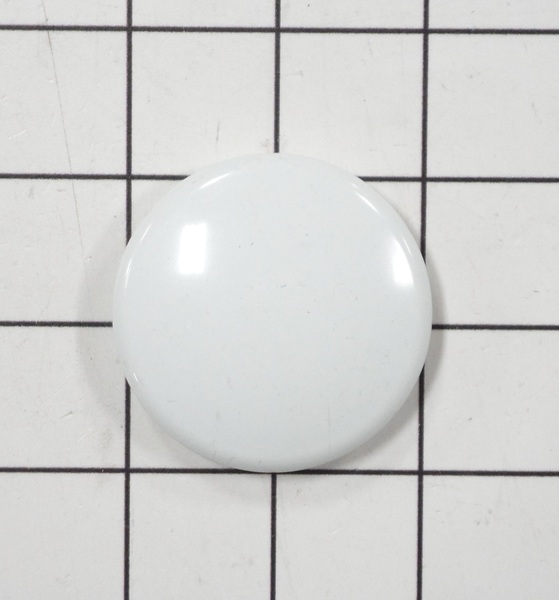

4	27001087	Cap, Timer Knob (Series: 10) (Replaces: 27001112)	$20.60 Special Order
5	WP27001126	Knob, Selector (silver) (Series: 10) (Replaces: 27001115)	$35.20 Special Order
6	WP489128	Screw, No.8-32x3/8`` Hex (Series: 10)	$6.70 In-Stock Retail: $6.50
7	WPY2200920	Timer (Series: 10) (Replaces: 37001089)	$199.40 Special Order
8	37001072	Panel, Back (Series: 10)	$10.60 Special Order
	8534058	Screw (Series: 10)	$6.70 Special Order
9	27001110	Console (wht) (Series: 10)	$39.70 Special Order
10	22001794	Switch, Rotary (2 Pos) (Series: 10)	$21.50 Special Order
11	33001618	Switch, Push-to-start (Series: 10) (Replaces: 37001090)	Call for Availability
12	37001091	Button, Push-to-start (slvr) (Series: 10)	$22.10 Special Order
13	33001623	Buzzer, Non-adjustable (Series: 10)	Call for Availability
	WP90767	Screw, 8b-18x3/8 Slt (Series: 10)	$4.80 In-Stock Retail: $4.59
14	33001640	Switch, Temperature (Series: 10)	$87.30 Special Order
15	WP74010226	Switch, Rocker (wht) (Series: 10)	$60.50 Special Order
