Whirlpool LER5600HZ0 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    assembly  belt  bias  door  drive  fuse  illus  includes  internal  paint  pressurized  pulley  roller  spray  strike  support  switch  thermal  thermostat  white


Select a Diagram


02 - Section   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 3397545 Panel, Rear Console $55.20
Special Order
3 WP694419 Buzzer   (Replaces: 694419) $86.10
 In-Stock
Retail: $83.91
4 285846 285846 Cap, End (l.h.) (white)
(Replaces: 3358528) 		$42.20
Special Order
285848 285848 Cap, End (l.h.) (almond)
(Replaces: 3358529) 		Call for Availability
5 3397692 Jumper, Wire $28.00
Special Order
6 WP388326 WP388326 Screw, Console
(Replaces: 388326) 		$4.80
 In-Stock
Retail: $4.59
7 WP693995 Screw, Hex Head   (Replaces: 693995) $4.80
 In-Stock
Retail: $4.59
8 285848 285848 Cap, End (r.h.) (almond) $28.00
Special Order
3358513 Cap, End (r.h.) (white) $4.40
Special Order
9 3395683 Housing, Connector (motor) $36.20
Special Order
10 WP349639 WP349639 Screen, Lint
(Replaces: 349639) 		$26.80
 In-Stock
Retail: $26.05
11 697368 697368 Cover, Lint Screen (almond) $11.80
Special Order
WP697367 WP697367 Cover, Lint Screen (white)
(Replaces: 688150) 		Call for Availability
12 WPW10044470 WPW10044470 Hinge, R.h. $4.80
 In-Stock
Retail: $4.59
WPW10044480 WPW10044480 Hinge, L.h. $4.80
 In-Stock
Retail: $4.59
13 W11693756 Screw, 8-18 X 5/8 $8.70
Special Order
14 3400859 Screw, Grounding $8.20
Special Order
15 3354925 Connector H-pod $13.70
Special Order
16 3977220 Top (white)   (Replaces: 3396022) $124.20
Special Order
3977221 Top (almond)   (Replaces: 3399163 3396023) $124.20
Special Order
18 WP94614 WP94614 Terminal (female) $4.80
Special Order
20 279872 279872 Resistor Assembly $52.30
 In-Stock
Retail: $50.97
21 WP3976569 WP3976569 Timer, 60 Hz.
(Replaces: 3976569) 		$207.30
 In-Stock
Retail: $202.15
23 WP3394427 WP3394427 Clip, Harness $4.80
 In-Stock
Retail: $4.59
29 WPW10139210 Screw, 8-18 X 5/16 $4.80
 In-Stock
Retail: $4.59
30 WP357213 WP357213 Nut, Push-in (2)
(Replaces: 357213) 		$4.80
 In-Stock
Retail: $4.59
31 3394296 Harness, Wiring $175.60
Special Order

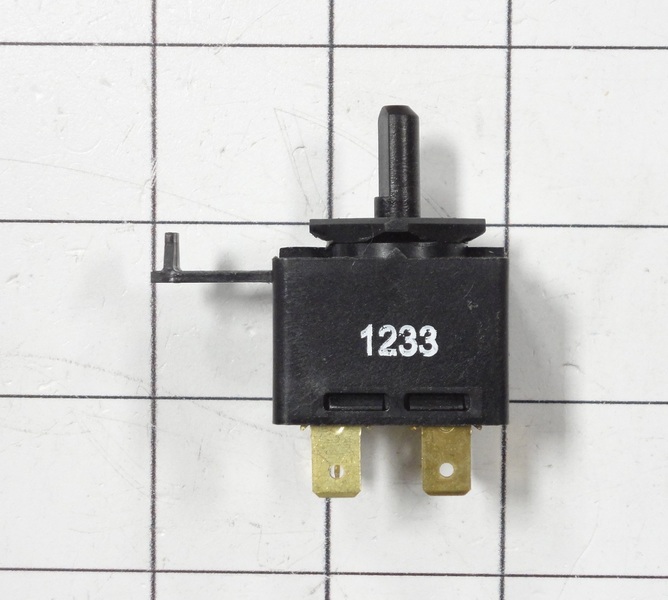

39 WP3395385 WP3395385 Switch, Push-to-start $69.40
Special Order
48 3957753 3957753 Timer Knob Assembly (almond) $42.20
Special Order
WP3957752 WP3957752 Timer Knob Assembly (white)
(Replaces: 3406143) 		$36.40
Special Order
49 3950760 Knob, Push To Start (almond) $33.30
Special Order
WP3957796 WP3957796 Knob, Push To Start (white)
(Replaces: 3950759) 		$37.00
Special Order
50 3936144 Connector $13.70
Special Order
53 8054298 Bracket, Control $28.20
Special Order
54 3976754 Panel, Control (white) $89.40
Special Order
3976755 Panel, Control (almond) $100.10
Special Order
LIT3406071 Guide, Use & Care Call for Availability
350956 350956 Paint, Spray 13 Oz. (almond) $16.80
 In-Stock
Retail: $16.34
978883 Almond (uncut) $106.60
Special Order
72017 72017 Paint, Touch-up 1/2 Oz. (white) $8.60
 In-Stock
Retail: $8.19
WP72107 WP72107 Paint, Touch-up (1/2oz.) (almond)
(Replaces: 72107) 		$9.80
 In-Stock
Retail: $9.49
799344 Paint, Bulk (1 Qt.) (white) (uncut) $128.20
Special Order
LIT3397618 Instructions, Installation Call for Availability
350938 350938 Paint, Pressurized Spray (12 Oz.) (primer,grey) $27.40
 In-Stock
Retail: $26.69
350930 350930 Paint, Pressurized Spray (12 Oz.) White $12.60
 In-Stock
Retail: $11.98
LIT3406688 Label, Wiring Diagram Call for Availability
