Maytag SAV5401AWW Parts List

Popular Searches: (Click to search) agitator assembly belt cap drain friction hose idler insert knob mixing nut pulley ring seal spin timer transmission valve wht

Select a Diagram

01 - Cabinet & Base

02 - Control Panel

03 - Mixing Valve And Hoses

04 - Motor, Pump And Idler Assembly

05 - Supplemental Information

06 - Top And Door Switch

07 - Transmission & Brake

08 - Tub (inner & Outer)

09 - Wiring Information

Double click the image below to zoom-in

Hover over In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability
1	27001195	Tub Cover Assy W` Gasket (Series: 10) (Replaces: 27001053)	Call for Availability
2	WP21001748	Tubing, Pvc 28`` (Series: 10)	$4.80 Special Order
3	40076601	Gasket, Tub Cover (Series: 10)	$13.00 Special Order
4	40111001P	Tub, Plastic Outer (Series: 10)	$44.40 Special Order
5	27001067	Bottom, Outer Tub (Series: 10)	$172.10 Special Order
6	Y37001124	Spring, Tall Tub (Series: 10) (Replaces: 27001026)	$4.50 In-Stock Retail: $4.33
7	40064301	Screw, 1/4-15x3/4 Hex (Series: 10)	$4.40 Special Order

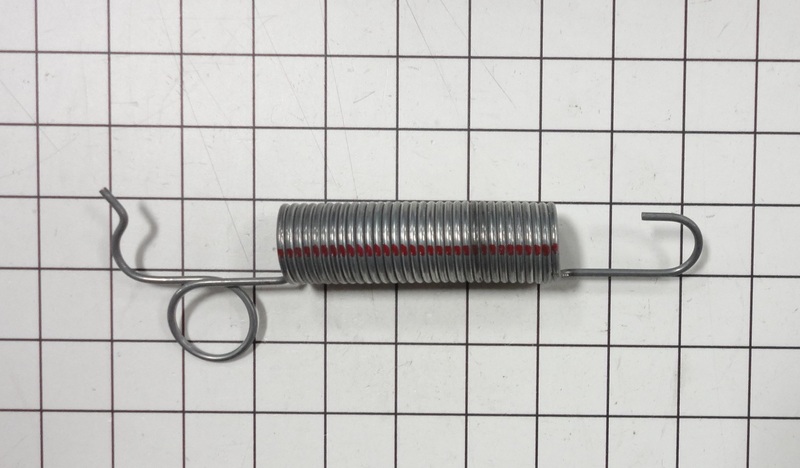

8	27001025	Spring, Counterweight (Series: 10)	$4.40 Special Order
9	WP285655	Clamp, Hose (Series: 10)	$4.80 In-Stock Retail: $4.59
10	40008501	Assembly, Pressure Bulb (Series: 10)	$37.30 Special Order
11	40037801	Grommet (Series: 10)	Call for Availability
12	WP21001905	Dispenser, Fabric (one Piece) (Series: 10) (Replaces: 21001905)	$45.90 Special Order
13	40008001	Filter, Lint (Series: 10)	$39.90 Special Order
14	40065102	Screw, Shoulder 1/4 (Series: 10)	$1.00 Special Order
15	WP22004042	Agitator/auger Assy (as Pk) (Series: 10) (Replaces: 22004042)	$168.40 Special Order
16	27001052	Balance Ring (Series: 10)	$101.00 Special Order
17	WP3400527	Screw, 5/16-18x7/8 Hx (Series: 10)	$4.80 Special Order
18	40000801	Assembly, Wash Tub S.s (Series: 10)	$168.20 Special Order
