Maytag S148DA03 (BOM: P1305601W) Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    103``  agitator  assy  bulb  cap  clip  crushed  defrost  end  helix  ice  light  maker  plastic  ptc  relay  switch  thermostat  tubing  union


Select a Diagram


04 - Fz Door & Cavity Cover Assemblies   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
11 12282901 Assy, Frz Dr (84`` Sxs) Call for Availability
13 12220602 Cover,cavity Call for Availability
33 10533002 10533002 Switch, Limit (water Disp) $20.80
Special Order
43 WP10533003 WP10533003 Switch, Limit (ice Disp)
(Replaces: 10533003) 		$39.40
Special Order
53 D7854105 Switch, Photosen Call for Availability
63 10166002 Switch, Crushed/cube $9.00
Special Order
73 10131702 Socket, Light $4.40
Special Order
83 W10857122 W10857122 Light Bulb
(Replaces: 67001316 M0360001) 		$7.20
 In-Stock
Retail: $6.95
103 W11084238 Screw $2.40
Special Order
113 M0237809 Screw, T.f. $4.40
Special Order
121 10933004 Gasket-door $80.90
Special Order
123 WP489349 WP489349 Screw $4.50
 In-Stock
Retail: $4.33
133 12194701 Switch, Disp. Light $19.00
Special Order
143 D7383483 Wire, Jumper Call for Availability
151 12063504 Extrsn-door Frame Call for Availability
153 D7383475 Wire, Jumper Call for Availability
161 12063403 Extrsn-door Handle Call for Availability
163 D7383476 Wire, Jumper Call for Availability
171 12113602 Extrsn-door Frame Call for Availability
181 12113604 Extrsn, Door Frame Call for Availability
183 WPM0104106 Clip   (Replaces: M0104106) $4.50
Special Order
191 12063707 Insert, Frz Top/bot Call for Availability
202 12235901 Harness, Frz Door $60.60
Special Order
211 12063710 Insert, Long Bot Call for Availability
212 WPA3223101 WPA3223101 Insert, Plastic Tube $4.50
Special Order
221 12192901 Assy, Fz Dr Shelf Call for Availability
231 12188001 Assy, Door Shelf Call for Availability
252 Y00000000 See Note Cavity Dispenser -- (not Replaceable Order Fz Dr Foam Assy) Call for Availability
262 12220301 Arm-water Disp $21.40
Special Order
272 12220401 Arm-ice Actuator $15.30
Special Order
292 12220502 Door Disp Call for Availability
312 12193801 Gasket-ice Dr $4.40
Special Order
332 B8380702 Insul-disp Door $4.40
Special Order
342 8169479 8169479 Screw $4.50
Special Order
352 A1061501 Pin, Chute Door Call for Availability
362 A1061601 Retainer, Ice Arm Call for Availability
372 R0000447 R0000447 Brkt-chute Door $40.10
Special Order
382 12194802 Assy, Spring & Delay Call for Availability

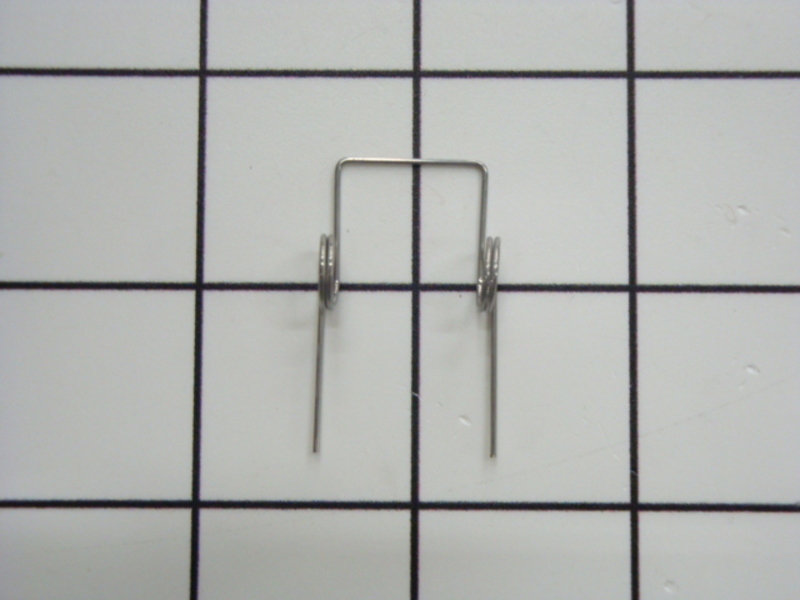

392 B8385402 B8385402 Spring, Return $16.20
Special Order
402 C8972501 Retainer Door Delay Call for Availability
412 C8973602 C8973602 Delay, Door $34.60
Special Order
422 WP90767 Screw, Sm $4.50
 In-Stock
Retail: $4.33
442 W11245710 Screw, Sm (stnls) $8.20
Special Order
451 12223901 Extrsn, 3/4`` Facade Call for Availability
461 12063706 Insert, Ref/frz Side Call for Availability
471 WP8281236 WP8281236 Screw (counter Sunk) $4.50
Special Order
481 12128001 Plug-inner Door Call for Availability
562 M0322202 Tie Wire $4.40
Special Order
601 12063709 Insert, Short Bot Call for Availability
612 12221102 Ice Shroud Call for Availability
621 M0224128 Screw $4.50
Special Order
NI R0150196 Chute,door-84`` Sxs $24.60
Special Order
