Maytag S136 Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    blk  clock  knob


Select a Diagram


09 - Top Assembly   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
1 71001213 Top (Series: 1) $153.80
Special Order
2 7772P024-60 7772P024-60 Grill, Air Blk (Series: 1) $87.90
Special Order
7772P024-60 7772P024-60 Grill, Air (blk) (Series: 14) $87.90
Special Order
3 Grate, Grill (Series: 1)
(Replaces: 703905) 		Call for Availability
4 708929 Plate, Rock (Series: 1) $46.30
Special Order
5 700819 700819 Support, Rock Plate (Series: 1) $49.30
 In-Stock
Retail: $48.07
6 Y712197 Wire, Brown (Series: 1) $15.00
Special Order
Y712227 Wire, Blue (Series: 1) $4.60
Special Order
Y712203 Wire, Violet (Series: 1) $4.00
Special Order

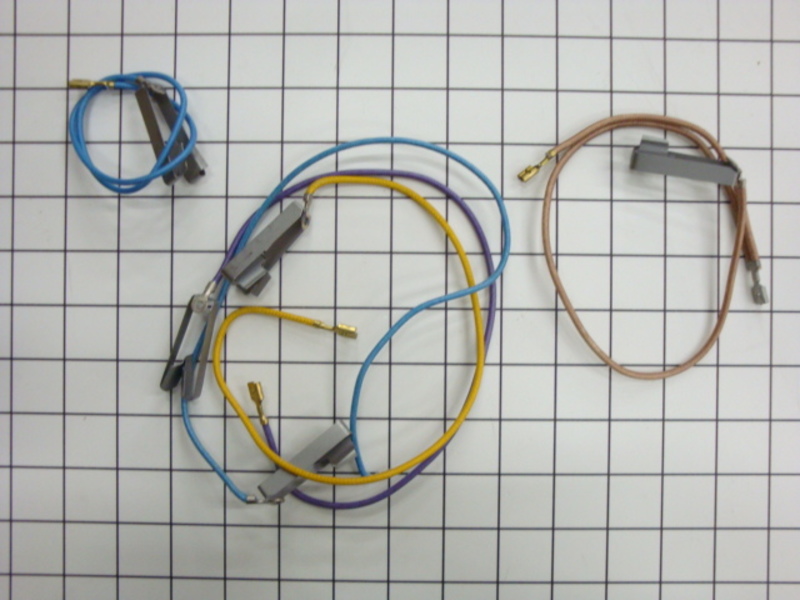

712228 712228 Kit, Wire (Series: 1) $47.80
Special Order
Y712200 Wire, Yellow (Series: 1) $26.80
Special Order
3401F035-19 Pan, Grill (lt) (Series: 1) $53.60
Special Order
7 Y702463 Tube, Drain (left) (Series: 1) $12.20
Special Order
8 WPY702434 WPY702434 Receptacle (ceramic) (Series: 1)
(Replaces: Y702434) 		$63.00
Special Order
9 3401F036-19 Pan, Grill (rt) (Series: 1) $53.60
Special Order
WP5708M007-60 WP5708M007-60 Wire, Yellow (Series: 1) $71.80
Special Order
Y712227 Wire, Blue (Series: 1) $4.60
Special Order
Y712199 Wire, Brown (Series: 1) $64.30
Special Order

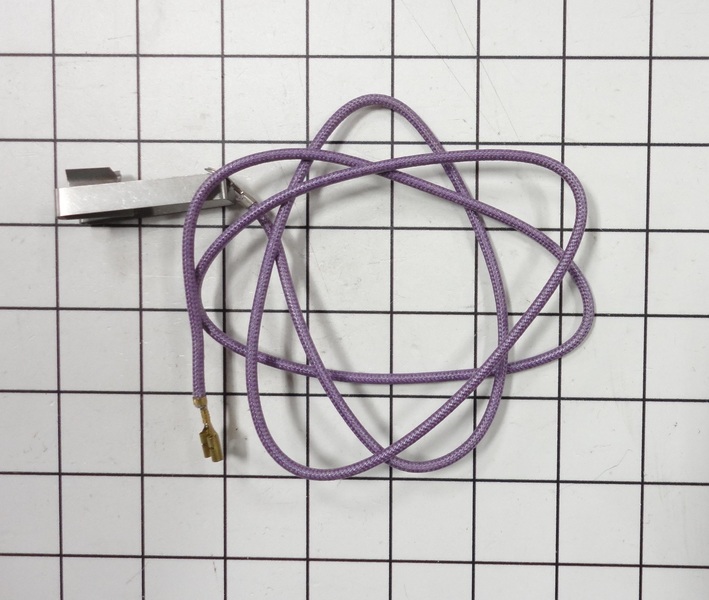

WP5708M008-60 WP5708M008-60 Wire, Violet (Series: 1) $50.70
Special Order

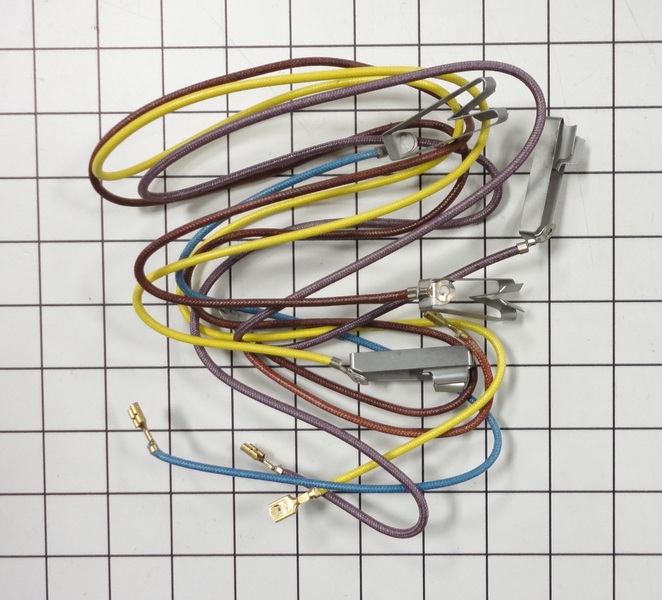

Y712229 Y712229 Kit, Wire (Series: 1) $59.70
Special Order
10 Y702327 Tube, Drain (right) (Series: 1) Call for Availability
11 WPY702434 WPY702434 Receptacle (ceramic) (Series: 1)
(Replaces: Y702434) 		$63.00
Special Order
12 12001898 Bracket (Series: 1) $0.70
Special Order
13 WP12990527 WP12990527 Screw (Series: 1) $4.80
 In-Stock
Retail: $4.59
14 Y700449 Insulator (Series: 1) $4.40
Special Order
15 WP489128 Screw (Series: 1) $6.70
 In-Stock
Retail: $6.50
16 74004835 74004835 Clip (Series: 1) $7.20
 In-Stock
Retail: $6.96
17 702747 Washer, Teflon (Series: 1) $4.40
Special Order
18 702748 Nut, Drain Tube (Series: 1) $4.40
Special Order
19 12001669 Escutcheon (blk) (Series: 1) $68.00
Special Order
Y04100547 Escutcheon (blk) (Series: 14) $82.50
Special Order
20 Y04100754 Bracket, Filler (Series: 1) $8.00
Special Order
21 W11233072 W11233072 Screw (Series: 1) $8.70
 In-Stock
Retail: $8.47
22 Y04100007 Element, Grill (240v) (Series: 1) $68.70
Special Order
23 WPY708730 WPY708730 Block, Terminal (Series: 1)
(Replaces: Y708730) 		$61.20
Special Order
24 Y700450 Clip, Shunt (Series: 1) $7.10
Special Order
25 Y708862 Nut, Speed (Series: 1) $8.40
Special Order
26 Y708572 Y708572 Spade, Contact (Series: 1) $7.60
Special Order

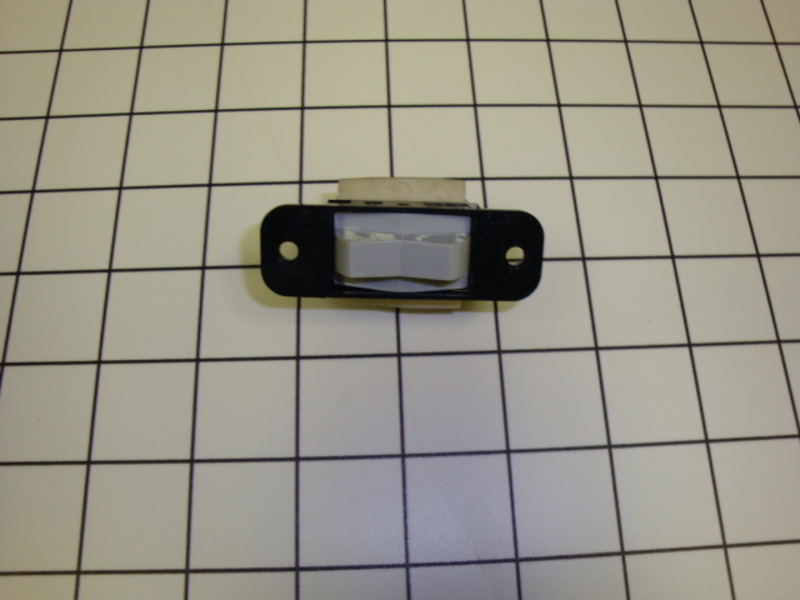

27 12200039 12200039 Switch, Fan (black) (Series: 1) $47.00
Special Order
28 4358055 4358055 Nut, Push (Series: 1) Call for Availability
Y705023 Palnut (Series: 1) Call for Availability
29 W11233072 W11233072 Screw (Series: 1) $8.70
 In-Stock
Retail: $8.47
