Whirlpool LA5300XMW0 Parts List

Popular Searches: (Click to search)    almond  bearing  centerpost  clamp  foot  gasket  hinge  hose  mounting  nut  oil  paint  pressurized  rear  screw  seal  spanner  spray  touch  white


Select a Diagram

02 - Top And Console

03 - Drive

04 - Pump

05 - Tub And Basket

06 - Cabinet

07 - Water System (non-suds Only)

08 - Miscellaneous , Literature And Optional

09 - Gearcase

10 - Basket Drive And Brake

Select Diagram ... 02 - Top And Console 03 - Drive 04 - Pump 05 - Tub And Basket 06 - Cabinet 07 - Water System (non-suds Only) 08 - Miscellaneous , Literature And Optional 09 - Gearcase 10 - Basket Drive And Brake

07 - Water System (non-suds Only)   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	285321	Sleeve Kit, Plastic Drain Hose (contains 2 Sleeves)	$49.40 Special Order
2	WP285655	Clamp, Hose (2) (Replaces: 65349)	$4.80  In-Stock Retail: $4.59
3	WP16272	Connector Straight (Replaces: 16272)	$4.80  In-Stock Retail: $4.59
4	285320	Siphon Break Kit (not Included)	$45.10  In-Stock Retail: $43.99
5	285664	Hose, Corrugated Plastic Drain (5-1/2 Ft.)	$31.80  In-Stock Retail: $30.98
	285666	Hose, Corrugated Plastic Drain (10 Ft.) (not Included)	$56.40 Special Order
6	357247	Retainer, Drain Hose	$1.90 Special Order
7	WP616099	Clamp, Hose	$4.40 Special Order
8	WP384496	Coupling, Hose (Replaces: 384496)	$53.30 Special Order
9	WP356138	Clamp, Hose (Replaces: 356138)	$4.80 Special Order
10	358805	Connector, 90$ff2$so	$13.70 Special Order
11	90876	Screw, Connector Mounting (10 X 3/4)	Call for Availability
12	351395	Clip	Call for Availability
13	WP356138	Clamp, Hose	$4.80 Special Order

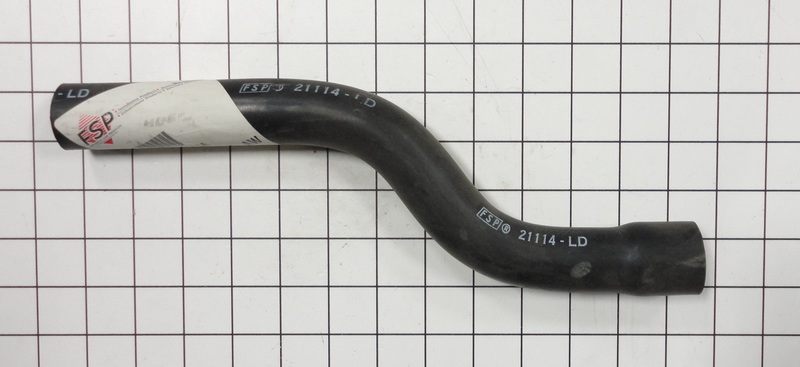

14	21114	Hose, Pump To 90~ Connector	$22.30 Special Order
15	WP285655	Clamp, Hose (8)	$4.80  In-Stock Retail: $4.59
