Whirlpool KUDS30IVBT0 Parts List

Popular Searches: (Click to search)    assembly  balance  bracket  control  dispenser  door  drain  electronic  fill  hose  link  metal  paint  pressurized  pump  spray  touch  undercounter  valve  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Lower Washarm And Strainer Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Lower Washarm And Strainer Parts 12 - Optional Parts (not Included)

01 - Door And Panel Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10056407	Instructions,installation	Call for Availability
	W10247455	Energy Guide	Call for Availability
	W10205938	Guide, Use & Care (spanish)	Call for Availability
	W10205937	Guide, Use & Care English & French	Call for Availability
	W10130990	Tech Sheet	Call for Availability
2	W11612302	Arm, Hinge (left)	$104.00  In-Stock Retail: $101.45
	W11612303	Arm, Hinge (right)   (Replaces: 8534853)	$104.00  In-Stock Retail: $101.45
3	8268983	Stiffener, Door	$28.80 Special Order
4	WPW10073520	Insulation, Door	$57.30 Special Order
5	W10871198	Access Panel (biscuit)	$89.70 Special Order
	W10909066	Access Panel (white)	$99.60 Special Order
	W10909064	Access Panel Black	$93.10 Special Order
6	W10349344	Panel, Full Front (includes Items 4, 12 & 13) (white)	$139.40 Special Order
	W10349342	Panel, Full Front (includes Items 4, 12 & 13) (biscuit)	$25.00 Special Order

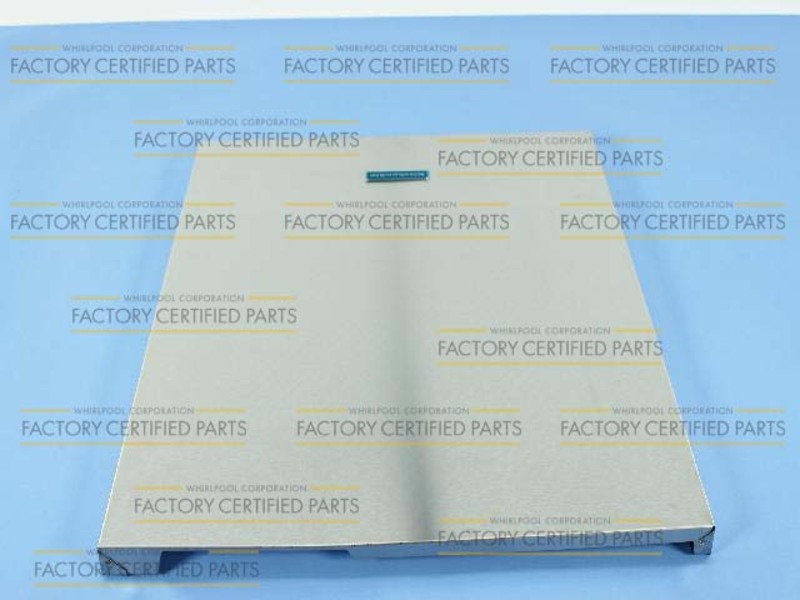

	W10349340	Panel, Full Front (includes Items 4, 12 & 13) (stainless) (Replaces: W10137620)	$214.10 Special Order
	W10349345	Panel, Full Front (includes Items 4, 12 & 13) (black)	$70.90 Special Order
7	WPW10586591	Toe Panel (includes Items 8 & 14) (white)	$197.60 Special Order
	W10871196	Toe Panel (includes Items 8 & 14) (black)	$99.60  In-Stock Retail: $97.11
	8558254	Toe Panel (includes Items 8 & 14) (biscuit)	$49.00 Special Order
8	W10831329	Insulation Toe Panel	$25.20 Special Order
9	WP302868	Screw Black   (Replaces: 302868)	$4.80  In-Stock Retail: $4.59
	3400865	Screw (biscuit)	$8.70 Special Order
	WP3400836	Screw (white)	$4.80 Special Order
10	WP489069	Screw	$4.80 Special Order
11	WP3400071	Screw	$4.80 Special Order
12	WPW10243391	Nameplate (stainless)   (Replaces: W10243391)	$38.80 Special Order
	WPW10243392	Nameplate (black)	$49.00 Special Order
	W10243394	Nameplate (biscuit)	$31.90 Special Order
	WPW10243393	Nameplate (white)	$46.50 Special Order
13	WP8269016	Clip, Grounding	$6.50 Special Order
