11 - Lower Rack   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10134647	Lower Rack Assembly (includes Item 3)	$209.10  In-Stock Retail: $203.95
2	9743048	Cover, Silverware Basket	Call for Availability
3	9743007	Wheel Assembly (2) Lower Rack (8)	$4.40  In-Stock Retail: $4.20
4	9743574	Basket Half, Silverware	$36.90 Special Order
5	9743545	Extension, Side Wall	$20.30 Special Order

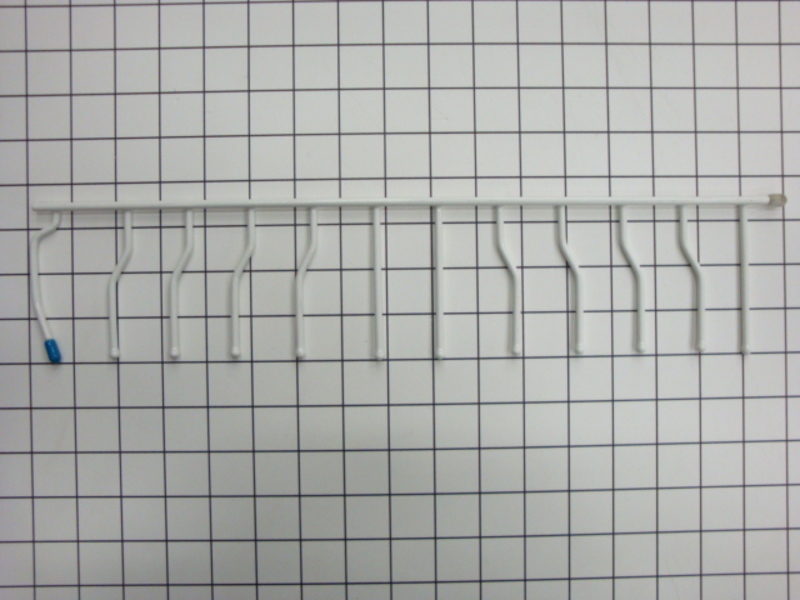

6	9743548	Flexrow (2)	$39.20 Special Order
7	9743534	Clip, Flexrow (6)	$16.10 Special Order
8	8268837	Cupshelf	$214.10 Special Order
10	WP9743019	Clip, Cupshelf (3)	$6.60 Special Order
11	WP3368629	Retainer, Flexrow (2)	$4.80 Special Order
