Maytag RFS12SW2A (BOM P1330208M) Parts List

Search Model by Keyword(s):

Popular Searches: (Click to search)    black  diode  magnetron  sleeve


Select a Diagram


04 - Electrical, Grease Shield, Ducts,   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item # Part # Description Price / Availability Add to Cart
001 53001646 Harness, Main Call for Availability
002 53001556 Grease Shield Call for Availability
003 53001610 Gasket $4.40
Special Order
004 53001557 Lamp Call for Availability
005 53001558 Lamp Socket / Bracket Assy Call for Availability
006 4176862 Screw, Pan Hd S/tap $13.20
Special Order
007 W10864742 Thermal Cut Out- Cavity $52.40
Special Order
008 W11380570 Screw, Tapping Truss Head $8.80
Special Order
009 53001559 Duct, Outlet-top Call for Availability
010 R0131307 Screw Tapping,pan Head $4.40
Special Order
011 53001643 Bracket- Thermostat $4.40
Special Order
012 R0654183 Screw, Truss Hd $4.40
Special Order
013 53001620 Air Deflector Call for Availability
014 53001562 Power Cord $44.00
Special Order
53001580 Power Cord Call for Availability
015 4344826 Screw, Bining Hd S/tap $10.10
Special Order
016 53001621 Cover, Power Cord Call for Availability
017 53001563 Duct, Main Call for Availability
018 53001462 Screw, Pan Head $4.40
Special Order

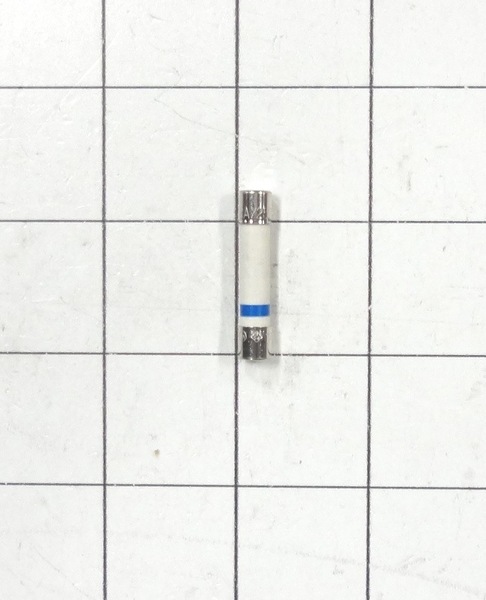

019 M0805105 M0805105 Fuse, 12 Amp Call for Availability
020 53001564 Fuse Block / Filter Assy Call for Availability
021 R0654180 Screw, Pan Hd $4.40
Special Order
022 4359624 Filter Assembly $12.30
Special Order
023 W10859575 W10859575 Magnetron $235.10
 In-Stock
Retail: $229.28
W10859575 W10859575 Magnetron $235.10
 In-Stock
Retail: $229.28
024 53001622 Bracket Call for Availability
025 53001623 Bracket, Capacitor Call for Availability
026 53001566 Capacitor- .95 Mf. $27.70
Special Order
53001582 Capacitor- 1.05 Mf $27.70
Special Order
027 53001583 Diode- Red Sleeve Call for Availability
WPR9800486 WPR9800486 Diode- Black Sleeve
(Replaces: R9800486)
$16.80
Special Order
028 53001624 Harness- Transformer Primary Call for Availability
029 53001567 Transformer Hv Call for Availability
53001584 Transformer Hv Call for Availability
030 53001568 Base- Transformer Call for Availability
031 53001569 Blower Motor Assy Call for Availability
032 53001570 Guide, Air Call for Availability
033 53001560 Thermal Cut Out- Magnetron Call for Availability
034 53001601 Switch Assy, Interlock $30.80
Special Order
