Whirlpool 6EC3FHKXWA00 Parts List

Popular Searches: (Click to search)    12oz  16``  access  assembly  biscuit  black  blade  evaporator  fan  grease  paint  pan  pressurized  silicone  slide  spray  thermistor  touch  valve  white


Select a Diagram

01 - Cabinet Parts

02 - Refrigerator Liner Parts

03 - Refrigerator Shelf Parts

04 - Freezer Liner Parts

05 - Refrigerator Door Parts

06 - Freezer Door Parts

07 - Air Flow Parts

08 - Control Parts

09 - Unit Parts

10 - Optional Parts (not Included)

Select Diagram ... 01 - Cabinet Parts 02 - Refrigerator Liner Parts 03 - Refrigerator Shelf Parts 04 - Freezer Liner Parts 05 - Refrigerator Door Parts 06 - Freezer Door Parts 07 - Air Flow Parts 08 - Control Parts 09 - Unit Parts 10 - Optional Parts (not Included)

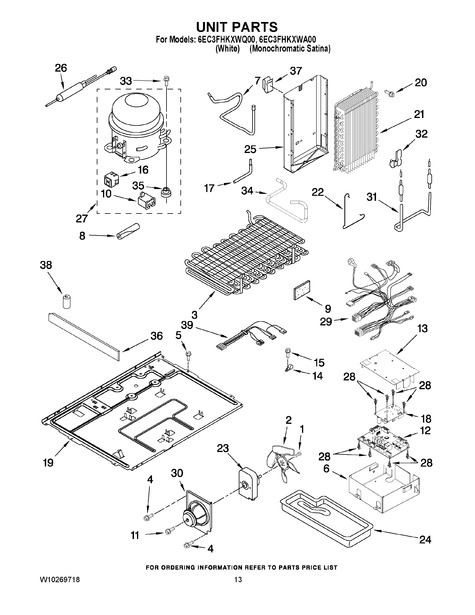

09 - Unit Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10141625	Screw	$13.60 Special Order
2	WPW10139483	Fan, Blade (Replaces: W10139483)	$59.90  In-Stock Retail: $58.43
3	W10131059	Condenser Assembly	$172.90 Special Order
4	3400524	Screw	$8.20 Special Order
5	WP3400906	Screw (6)	$4.80 Special Order
6	2224844	Housing, Control Board	$53.10 Special Order
7	W10528579	Tube Suction	$205.90 Special Order
8	W11751592	Sleeve	$13.00 Special Order
9	W11553819	Insulatiion, Sound	$8.70  In-Stock Retail: $8.47
10	2321245	Capacitor	$80.90 Special Order
11	WP489464	Screw	$4.80 Special Order
12	WPW10158418	Elek Ctrl, Python	$206.30 Special Order
13	W10293050	Cover, Ctrl Board	$68.40 Special Order
14	WP1115374	Clamp, Cable	$4.80 Special Order
15	WP489478	Screw	$4.80  In-Stock Retail: $4.59
16	2312003	Combo-start Device	$50.50 Special Order
17	W10858105	Process Tube	$109.70 Special Order
18	W10143228	Electronic Control	$144.70 Special Order
19	2306932	Baseplate	$140.90 Special Order
20	WPW10171469	Screw   (Replaces: W10171469)	$6.70 Special Order
21	WP2188823	Evaporator   (Replaces: 2188823)	$229.50  In-Stock Retail: $223.90
22	WP2161324	Clamp	$6.40 Special Order
23	WP2321271	Fan, Motor	$208.30 Special Order
24	2223398	Tray, Evaporator	Call for Availability
25	2224022	Heat Shield	$130.20 Special Order
26	WPW10143759	Drier	$17.10  In-Stock Retail: $16.59
27	WP8201733	Compressor (includes Item 16 & 35)	$449.60 Special Order
28	2223800	Spacer (9)	$11.40 Special Order
29	W10193356	Harness, Main Control	$119.20 Special Order
30	2224024	Fan, Motor Bracket	$39.30 Special Order
31	W10199151	Heater, Defrost	$108.40 Special Order
32	W11623163	Clip	$7.10 Special Order
33	876811	Screw (4)	$4.80 Special Order
34	W10181542	Tube, Discharge	$35.60 Special Order
35	876811	Grommet (4)	$4.80 Special Order
36	2223394	Extension, Air Baffle	$64.10 Special Order
37	2155547	Clip, Heat Shield	$4.40 Special Order
38	W10852725	Grommet, Cond (4)	$4.80  In-Stock Retail: $4.59
39	W10193358	Unit Harness	$64.50 Special Order
NI	978028	Valve, Access (1/2)	Call for Availability
	978029	Valve Access (5/8``)	$65.50 Special Order
	978030	Valve, Access (3/4``)	$84.20 Special Order
	876764	Valve, Access(3/16``)	$56.70  In-Stock Retail: $55.29
	WP978025	Valve, Access (1/4``) (Replaces: 978025)	$65.70  In-Stock Retail: $64.01
	978026	Valve, Access (5/16``)	$78.60  In-Stock Retail: $76.67
	978027	Valve, Access (3/8``)	$80.20  In-Stock Retail: $78.20
