Whirlpool KUDM24SEWH1 Parts List

Popular Searches: (Click to search)    also  black  drain  electronic  funnel  includes  item  kit  manifold  mount  order  paint  pressurized  screw  spray  sprayarm  thermal  touch  upper  white


Select a Diagram

01 - Door And Panel

02 - Control Panel

03 - Door And Latch

04 - Lower Washarm And Strainer

05 - Heater

06 - Fill And Overfill

07 - Upper Wash And Rinse

08 - Tub And Frame

09 - Pump And Motor

10 - Upper Rack And Track

11 - Lower Rack

12 - Miscellaneous, Lit/optional

Select Diagram ... 01 - Door And Panel 02 - Control Panel 03 - Door And Latch 04 - Lower Washarm And Strainer 05 - Heater 06 - Fill And Overfill 07 - Upper Wash And Rinse 08 - Tub And Frame 09 - Pump And Motor 10 - Upper Rack And Track 11 - Lower Rack 12 - Miscellaneous, Lit/optional

06 - Fill And Overfill   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	W10207863	Control, Overfill Assembly (also Order Item 14) (Replaces: 9742938)	$65.90 Special Order
2	WP9742727	Hose, Inlet	$5.30 Special Order
3	675828	Water Inlet Assembly (includes Items 4 & 5)	$38.20 Special Order

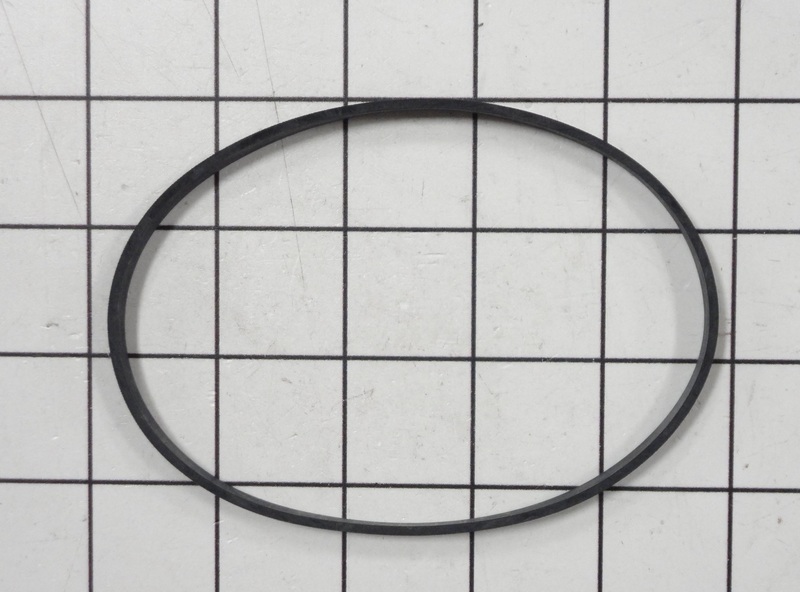

4	9742787	Gasket	$4.40 Special Order
5	9742786	Bezel, Inlet	$29.50 Special Order
6	WP596669	Clamp, Hose	$4.80  In-Stock Retail: $4.59
7	W10844024	Fill Valve Assembly	$60.10  In-Stock Retail: $58.58
8	WP489069	Screw	$4.80 Special Order
10	4159424	Screw	Call for Availability
11	WP9743413	Switch, Overfill Control (Replaces: 9740811)	$27.10 Special Order
12	W10207863	Standpipe, Overfill	$65.90 Special Order
13	WP8531743	Gasket, Flat (Replaces: 4161670)	$27.00  In-Stock Retail: $26.32
14	675805	Nut, Standpipe   (Replaces: 4161596)	$0.70 Special Order
15	9743070	Float & Retainer Assembly	$40.20  In-Stock Retail: $39.21
16	4171116	Lever, Overflow Switch	$4.40 Special Order
