Whirlpool KUDL03IVWH4 Parts List

Popular Searches: (Click to search)    assembly  balance  black  bracket  cable  chopper  control  dispenser  door  drain  hose  latch  metal  paint  pressurized  pump  spray  touch  undercounter  white


Select a Diagram

01 - Door And Panel Parts

02 - Control Panel And Latch Parts

03 - Inner Door Parts

04 - Fill, Drain And Overfill Parts

05 - Tub And Frame Parts

06 - Pump And Motor Parts

07 - Upper Wash And Rinse Parts

08 - Heater Parts

09 - Upper Rack And Track Parts

10 - Lower Rack Parts

11 - Lower Washarm And Strainer Parts

12 - Optional Parts (not Included)

Select Diagram ... 01 - Door And Panel Parts 02 - Control Panel And Latch Parts 03 - Inner Door Parts 04 - Fill, Drain And Overfill Parts 05 - Tub And Frame Parts 06 - Pump And Motor Parts 07 - Upper Wash And Rinse Parts 08 - Heater Parts 09 - Upper Rack And Track Parts 10 - Lower Rack Parts 11 - Lower Washarm And Strainer Parts 12 - Optional Parts (not Included)

03 - Inner Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WPW10348413	Screw, Door (Replaces: 3400815)	$4.90  In-Stock Retail: $4.78
2	W11631670	Screw   (Replaces: 8281217)	$8.70 Special Order
3	WPW10056249	Inner Door Mastic Assembly (also Orderitem 6)   (Replaces: W10056249)	$133.20 Special Order
4	WPW10077883	Inlet, Air   (Replaces: W10077883)	$43.40 Special Order
5	WPW10164259	Vent Assembly (also Order Item 6) (Replaces: W10164259)	$134.10 Special Order
6	WP8269259	Gasket, Vent (Replaces: 8269259)	$50.60  In-Stock Retail: $49.29
7	WPW10077877	Deflector, Vent (also Orderitem 6)	$24.00 Special Order
8	WPW10199696	Dispenser,assembly (Replaces: W10195174 WPW10195172 W10224431)	$190.20  In-Stock Retail: $185.50
9	WP8269258	Seal. Front	$59.00 Special Order
10	8545608	Harness, Vent Motor	$106.30 Special Order
11	8574160	Seal. Side	$59.60 Special Order

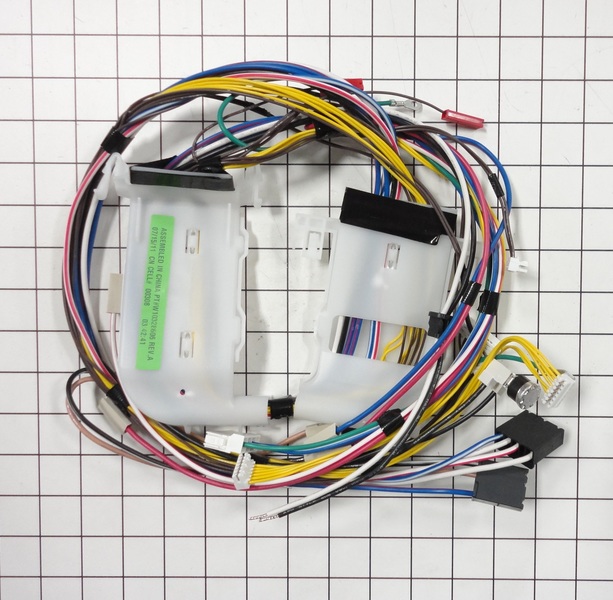

12	WPW10413097	Wiring Harness	$189.50 Special Order
13	WPW10177098	Screw (Replaces: W10177098)	$5.10  In-Stock Retail: $4.88
14	WP8535660	Seal,console/door   (Replaces: 8535660)	$113.20 Special Order
15	WPW10462232	Bracket, Dispenser	$21.50 Special Order
16	WP8531865	Shield, Dispenser	$69.30 Special Order
17	WPW10077881	Knob, Rinse Aid (Replaces: W10077881)	$17.40  In-Stock Retail: $16.93
