Whirlpool KUDJ230Y1 Parts List

Popular Searches: (Click to search)    2oz  almond  also  black  drain  flat  gasket  impeller  includes  item  kit  note  order  paint  pressurized  see  spray  touch  valve  white


Select a Diagram

01 - Door And Panel

02 - Blower

03 - Control Panel, Lit/optional

04 - Pump And Motor

05 - Lower Washarm And Strainer

06 - Heater

07 - Fill And Overfill

08 - Upper Wash And Rinse

09 - Frame And Tank

10 - Upper Rack And Track

11 - Lower Rack

12 - Door And Latch

Select Diagram ... 01 - Door And Panel 02 - Blower 03 - Control Panel, Lit/optional 04 - Pump And Motor 05 - Lower Washarm And Strainer 06 - Heater 07 - Fill And Overfill 08 - Upper Wash And Rinse 09 - Frame And Tank 10 - Upper Rack And Track 11 - Lower Rack 12 - Door And Latch

09 - Frame And Tank   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4171627	Short Frame Assembly (includes Items 2, 18, 19, 21 & 23)	Call for Availability
2	9740980	Screw, 10-16 X 1/2	Call for Availability

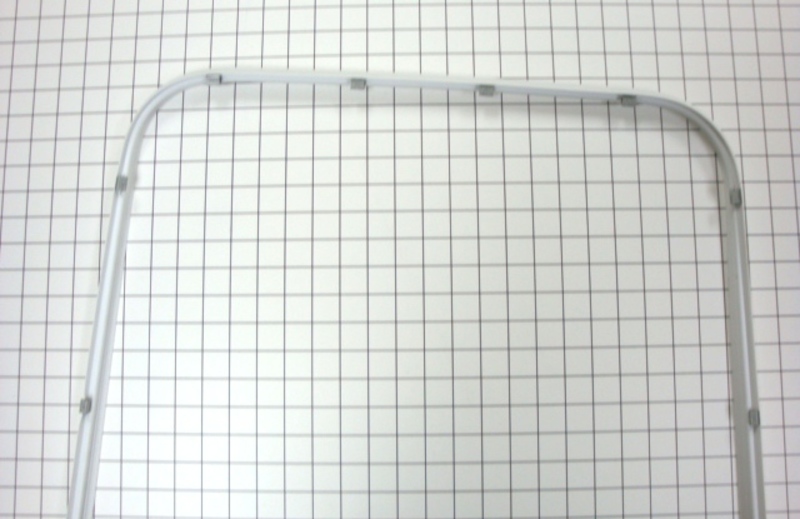

3	WP4161631	Door Seal Assembly (includes Item 4)	$75.50 Special Order
4	4161608	Clip, Seal	$4.40 Special Order
5	4161626	Bumper, Door	$19.80 Special Order
7	9740303	Clip, Retainer	$4.40 Special Order

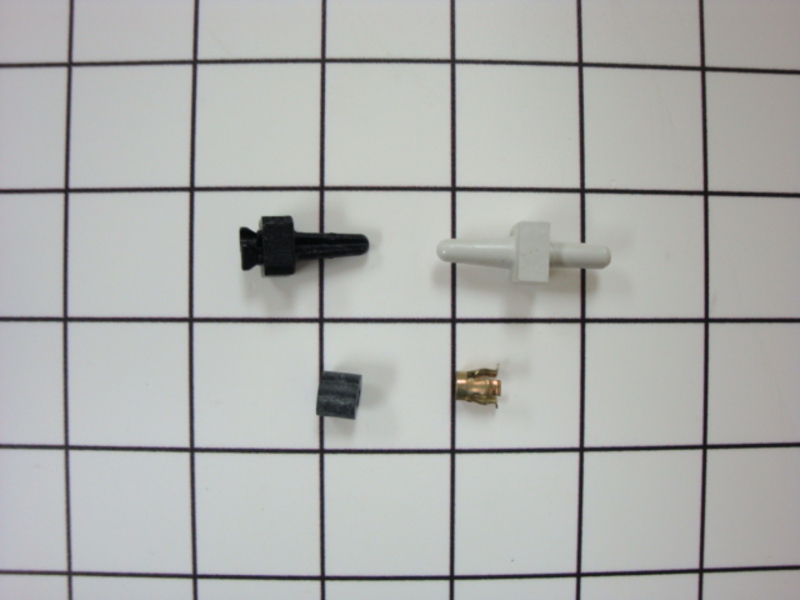

9	4172040	Actuator, Interlock Switch	$32.50 Special Order
10	4159115	Lock Nut	Call for Availability
11	4160092	Keeper, Latch	$9.50 Special Order
12	WP1163839	Screw, 10-16 X 3/8	$4.50 Special Order

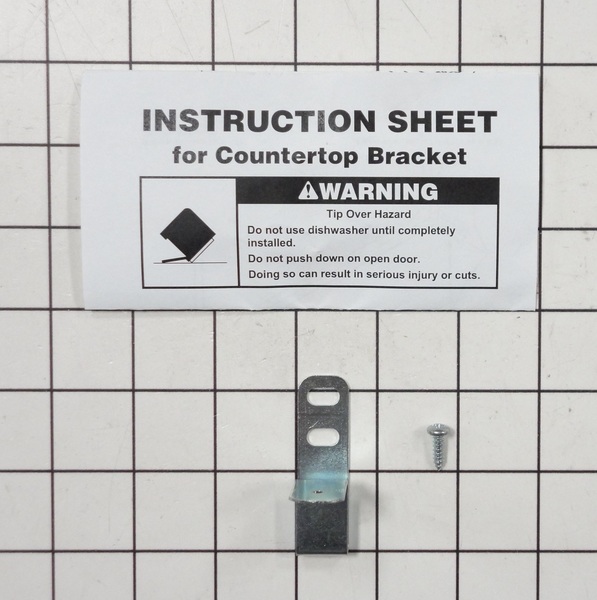

13	WP9741251	Bracket, Top Panel Anchor	$4.80 Special Order
14	9741257	Screw, 7-19 X 1/2	$0.50 Special Order
16	9741276	Support, Lower Panel	Call for Availability
17	4162151	Screw, 10-32 X 1/2	Call for Availability
18	4171620	Frame Assembly (l.h.)	Call for Availability
19	9741173	Cross Frame, Rear	Call for Availability
20	9740120	Sleeve, Actuator Spacer	Call for Availability
21	4171619	Frame Assembly (r.h.)	Call for Availability
22	4159443	Screw, 1/4-20 X 1/2	Call for Availability
23	4161368	Cross Frame, Front	Call for Availability
24	4171618	Kick Board	$53.00 Special Order
25	4162911	Foot, Leveling (4)	Call for Availability
27	595095	Screw, 10-32 X 3/8	$4.40 Special Order
28	W11233072	Screw, 8-18 X 1/2	$8.70  In-Stock Retail: $8.47
	4161369	Enclosure, Elec. Supply	Call for Availability
29	4171176	Shield, Insulation	$21.60 Special Order
32	9741372	Tank (serviced Complete With Frame)	Call for Availability
33	3367669	Protector, Edge	$25.30 Special Order
34	304658	Relay, Start	$42.60 Special Order
35	4159403	Screw, 8-18 X 1-1/4	Call for Availability
