Frigidaire R433MDM4 Parts List

Popular Searches: (Click to search)    6``  8``  bake  block  element  housing  large  light  oven  pan  small  switch  terminal


Select a Diagram

02 - Control Panel

03 - Door Parts

04 - Cooktop And Broiler Parts

05 - Drawer Parts

06 - Body Parts

Select Diagram ... 02 - Control Panel 03 - Door Parts 04 - Cooktop And Broiler Parts 05 - Drawer Parts 06 - Body Parts

03 - Door Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	5308012547	Glass-outer Black	Call for Availability
2	5303051630	Insulation	Call for Availability
3A	5303200951	Liner-oven Door	Call for Availability
4	5308003268	Seal, Door	Call for Availability
5	5303207187	Handle	Call for Availability
6	5301324812	Spacer-door (4)	$2.30 Special Order
7	5305297101	Bumper-top (2)	$2.40 Special Order
8	5303131771	Bumper-bottom (2)	Call for Availability
9	5303051822	Channel, Door Hinge (2)	Call for Availability
10	08003264	Spring-oven Door	Call for Availability
11	5303931006	Roller-kit	Call for Availability

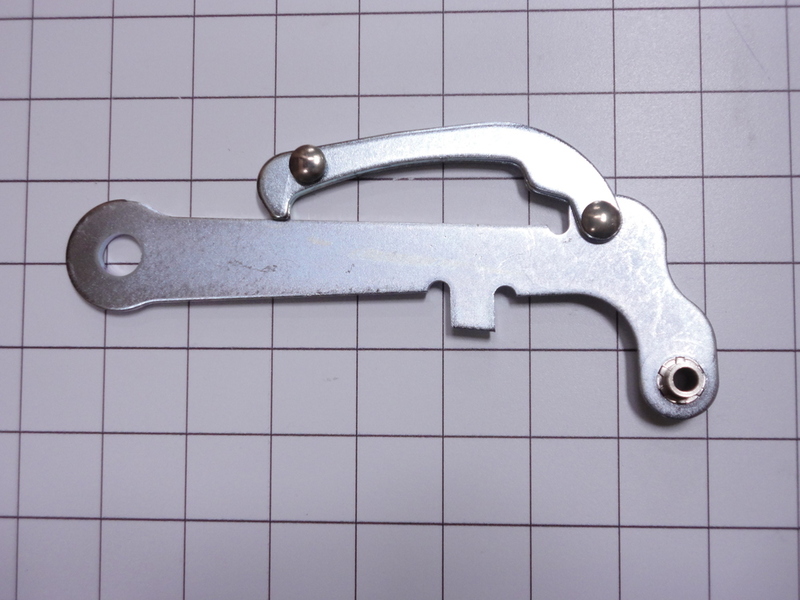

12	5308003183	Hinge, Arm (2)	$65.70 Special Order
13	08012004	Axle	$5.90 Special Order
14	5308015939	Frame-door	$72.00 Special Order
*29161	5303051860	Screw-handle Mtg. (4)	$3.60 Special Order
