Whirlpool KTRS19ELBT00 Parts List

Popular Searches: (Click to search)    access  assembly  bimetal  blade  complete  defrost  drier  fan  grease  icemaker  paint  pressurized  service  silicone  spray  touch  trim  valve  washer  white


Select a Diagram

01 - Cabinet, Literature

02 - Liner

03 - Shelf

04 - Refrigerator Door

05 - Unit

06 - Ice Maker

07 - Freezer Door

08 - Water Dispenser, Optional

Select Diagram ... 01 - Cabinet, Literature 02 - Liner 03 - Shelf 04 - Refrigerator Door 05 - Unit 06 - Ice Maker 07 - Freezer Door 08 - Water Dispenser, Optional

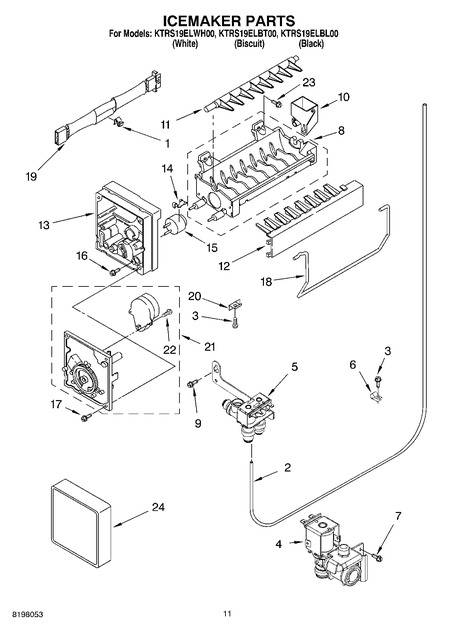

06 - Ice Maker   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	WP628379	Clip, Fuse	$6.80 Special Order
2	W10823511	Tube, Water (Replaces: 4387492 2210514)	$19.60  In-Stock Retail: $19.12
3	WP489478	Screw	$4.80  In-Stock Retail: $4.59
4	WPW10498990	Valve Solenoid (Replaces: 2219594)	$135.20  In-Stock Retail: $131.89
5	WP2188785	Valve (double), Solenoid (Replaces: 2219592)	$150.60 Special Order
6	WP488366	Clamp, Tube	$7.10 Special Order
7	WP489464	Screw   (Replaces: 489464)	$4.80 Special Order
8	WP542638	Silicone Grease (Replaces: 542638)	$43.00  In-Stock Retail: $41.95
	WPW10190929	Mold & Heater Assembly (also Order	$142.80 Special Order
9	WP489442	Screw (Replaces: 489442)	$6.70 Special Order
10	WP628356	Cup-water Fill (Replaces: 628356)	$29.50  In-Stock Retail: $28.74
11	WP627843	Ejector	$58.30 Special Order
12	WP2182124	Ice Stripper	$54.40 Special Order
13	WP2195914	Support	$66.80  In-Stock Retail: $65.15
14	WP2315522	Retainer, Thermostat	$6.80 Special Order
15	WP4317852	Cement Alumilastic)	$42.50 Special Order
	WP627985	Thermostat (also Order)	$69.70  In-Stock Retail: $67.92
16	8533917	Screw	$8.70 Special Order
17	WP681249	Screw	$4.80  In-Stock Retail: $4.59
18	WP627792	Shut Off Arm (Replaces: 627792)	$56.30  In-Stock Retail: $54.90
19	WP2187464	Harness, Wiring	$86.90  In-Stock Retail: $84.74
20	W11500948	Bracket	$19.90  In-Stock Retail: $19.40
21	W10190935	Module Assembly (includes Item 38)	$110.60  In-Stock Retail: $110.57
22	489136	Screw (3-24 X 23/64)	$6.70 Special Order
23	WP488163	Screw, 8 X 13/16	$4.80  In-Stock Retail: $4.59
24	WPW10289690	Cover	$4.80 Special Order
99	4317943	Complete Icemaker Assembly	$119.95  In-Stock Retail: $124.79
