Frigidaire PLGF659GCA Parts List

Popular Searches: (Click to search)    12k  14k  assy  burner  clock  door  hinge  ignitor  module  mtg  orifice  oven  probe  screw  sealed  spark  spring  switch  temp  top


Select a Diagram

03 - Backguard

05 - Burner

07 - Body

09 - Top/drawer/smalldoor

11 - Oven Door

01 - Cover

Select Diagram ... 03 - Backguard 05 - Burner 07 - Body 09 - Top/drawer/smalldoor 11 - Oven Door 01 - Cover

09 - Top/drawer/smalldoor   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	318157611	Drawer,storage ,black	$222.60 Special Order
2	318336500	Panel,insulation ,upper	$180.30 Special Order
3	318336100	Divider,vent Box ,side	$24.30 Special Order
3A	318336200	Divider,vent Box ,center	$22.00 Special Order
4	318315102	Panel,drawer ,stainless ,outer	$260.00 Special Order
7	318332200	Roller,nylon	$13.40 Special Order
11	318316002	Bracket,drawer Panel ,right ,(1)	$38.70 Special Order
11A	318316003	Bracket,drawer Panel ,left ,(1)	$38.70 Special Order
13	5303051055	Channel-drawer, Rh	$41.10 Special Order
13A	5303051056	Channel,drawer ,lh	$57.00 Special Order
16	318185211	Main Top Assy,glass ,black	$745.10 Special Order
20	318221760	Grate,black ,(2)	$261.70 Special Order
20A	318221759	Grate,black ,center	$260.90 Special Order
21	316264803	Skirt,16/17k Burner ,black	$67.80 Special Order
21A	316241904	Skirt,5k Burner ,black	$63.50 Special Order
21B	316241804	Skirt,9.5k Burner ,black ,(2)	$61.60 Special Order
21C	316264903	Skirt,14k Burner ,black	$72.80 Special Order
21D	316241704	Skirt,12k Burner ,black	$57.80 Special Order
22	316271904	Cap,16/17k Burner ,black	$149.10 Special Order
22A	5304507219	Cap,5k Burner ,black (Replaces: 316206604)	Call for Availability
22B	316213505	Cap,9.5k Burner ,black ,(2)	$167.50  In-Stock Retail: $163.38
22C	316219905	Cap,14k Burner ,black	$112.90 Special Order
22D	316213605	Cap,12k Burner ,black	$104.00 Special Order

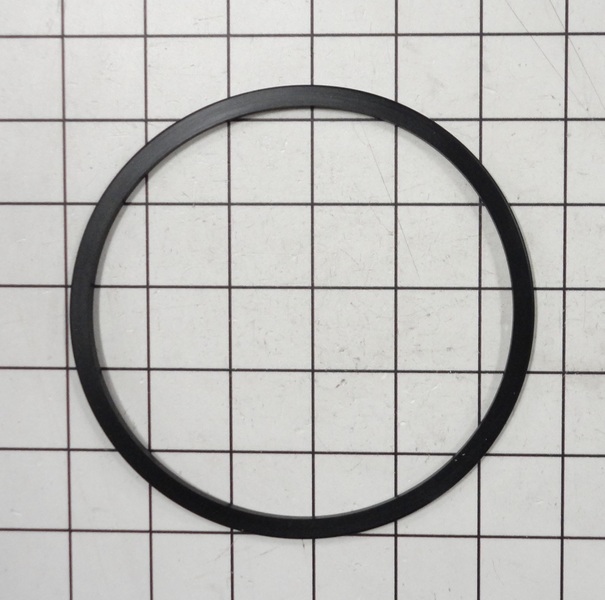

31	316242004	Seal,16/17k Burner	$12.90 Special Order
31A	316242003	Seal,5k Burner	$10.30 Special Order
31B	316242002	Seal,9.5k Burner	$17.00  In-Stock Retail: $16.49
31C	316242000	Seal,14k Burner	$53.30  In-Stock Retail: $51.99
31D	316242001	Seal,12k Burner	$14.40  In-Stock Retail: $13.99

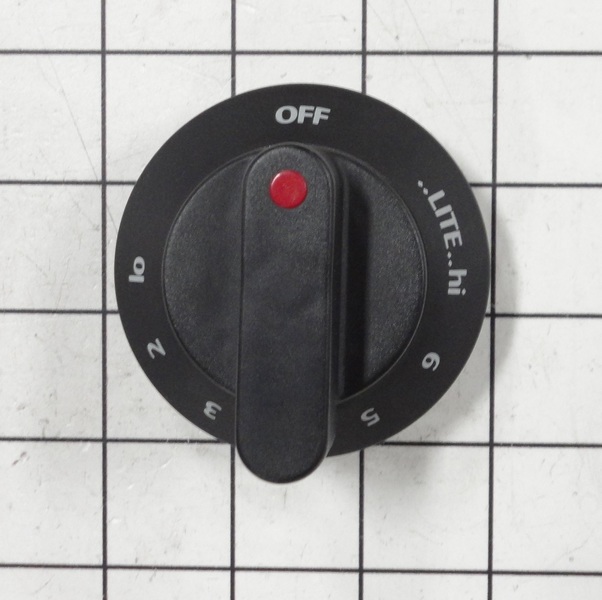

33	318341400	Knob,control ,(5)	$49.20  In-Stock Retail: $47.99
35	318341300	Skirt,(5)	$7.70 Special Order
39	318219805	Handle,door/drawer ,stainless	$103.10 Special Order
46	318336300	Deflector,ventilation	$30.20 Special Order
50	318315900	Deflector,flue	$128.30 Special Order
51	318315301	Gasket,flue Deflector	$37.50 Special Order
52	5304453933	Pushnut,flue Deflector ,(2)	$4.30 Special Order
60	5304400794	Screw,handle Mtg ,10-32 X 3/4	$5.70 Special Order
69	5303308450	Screw,8 X 0.375 ,(10)	$7.70 Special Order
124	318336401	Box,vent	$111.50 Special Order
NI	5303131801	Screw, 10 X 3/8	$3.90 Special Order
	5303300265	Screw,8-18 X 1/2 ,(4)	$10.30 Special Order
