Maytag MVWC450WW0 Parts List

Popular Searches: (Click to search)    agitator  and  brake  breakdown  clutch  complete  dog  drive  for  further  inlet  lid  page  pump  refer  switch  touch  tube  water  white


Select a Diagram

01 - Top And Cabinet Parts

02 - Controls And Rear Panel Parts

03 - Agitator, Basket And Tub Parts

04 - Brake, Clutch, Gearcase, Motor And Pump Parts

05 - Machine Base Parts

06 - Wiring Harness Parts

07 - Brake And Drive Tube Parts

08 - Gearcase Parts

09 - Optional Parts (not Included)

Select Diagram ... 01 - Top And Cabinet Parts 02 - Controls And Rear Panel Parts 03 - Agitator, Basket And Tub Parts 04 - Brake, Clutch, Gearcase, Motor And Pump Parts 05 - Machine Base Parts 06 - Wiring Harness Parts 07 - Brake And Drive Tube Parts 08 - Gearcase Parts 09 - Optional Parts (not Included)

03 - Agitator, Basket And Tub Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart

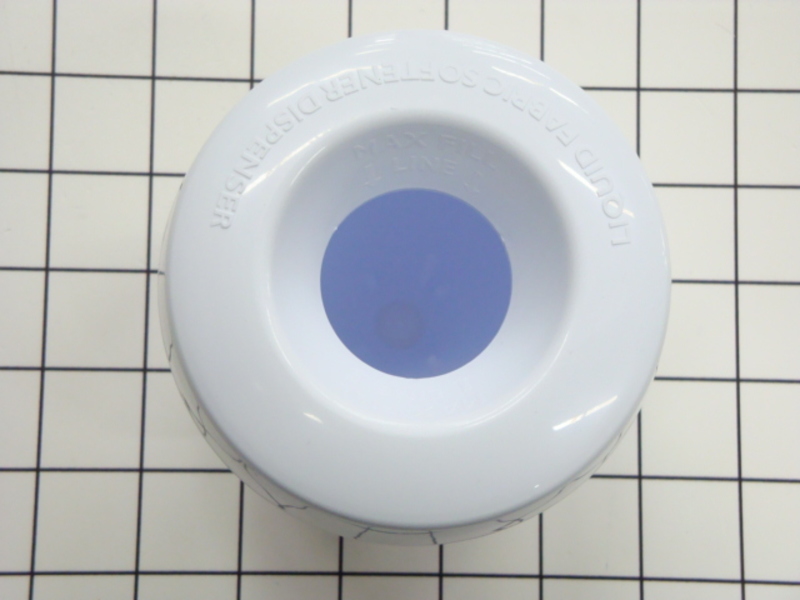

1	8575076A	Dispenser, Fabric Softener	$21.30  In-Stock Retail: $20.70
2	WPW10074580	Cap, Barrier	$4.80  In-Stock Retail: $4.59
3	WPW10072840	Seal, Inner Cap (Replaces: W10072840)	$4.80  In-Stock Retail: $4.59
4	WP358237	Screw & Washer (5/16-24 X 1) (Replaces: 358237)	$4.40  In-Stock Retail: $4.20
5	WP3949550	Washer (Replaces: 3949550)	$7.00  In-Stock Retail: $6.76
6	WPW10093672	Agitator (complete)	$186.50 Special Order
7	285811	Cam, Driven	$21.60  In-Stock Retail: $20.98
8	80040	Dog, Agitator Clutch (4) (Replaces: 3366877)	$9.50  In-Stock Retail: $4.20
9	WP3363661	Bearing-driven Cam (Replaces: 3363661)	$4.80 Special Order
10	WP3349019	Clothes Mover	$128.30  In-Stock Retail: $125.08
11	285587	Spacer, Thrust	$4.40  In-Stock Retail: $4.33
12	WPW10110020	Agitator   (Replaces: W10110020)	$113.90 Special Order
13	W10168523	Tub Ring	Call for Availability
14	WP3976308	Gasket, Tub Ring (Replaces: 3359585)	$17.40  In-Stock Retail: $16.89
15	WP3354845	Clip, Agitator (Replaces: 3354845)	$15.10 Special Order
16	WP8543666	Washer, Agitator (Replaces: 8543666)	$7.70 Special Order
17	WP387240	Balance Ring   (Replaces: 387240)	$102.40  In-Stock Retail: $99.85
18	WP21366	Nut, Spanner (Replaces: 21366)	$4.80  In-Stock Retail: $4.59
19	W10196537	Basket & Balance Ring	$151.40 Special Order
20	2219077	Clip, Pressure Switch Hose	$38.40 Special Order
21	WP353244	Hose, Pressure Switch (Replaces: 3347780)	$52.00  In-Stock Retail: $50.70
22	WP389140	Block, Basket Drive (Replaces: 389140)	$16.80  In-Stock Retail: $16.34
23	63849	Tub	$155.50 Special Order
24	W10814296	Gasket, Centerpost (Replaces: 383727)	$4.90  In-Stock Retail: $4.75
