Frigidaire MDG336REW1 Parts List

Popular Searches: (Click to search)    basket  bearing  belt  booster  coil  drum  dryer  gas  glide  idler  includes  kit  lower  main  motor  pulley  rear  seal  secondary  shaft


Select a Diagram

02 - Cabinet/drum

03 - Front Panel/lint Filter

04 - Controls/top Panel

05 - Motor

06 - Burner

01 - Cover

Select Diagram ... 02 - Cabinet/drum 03 - Front Panel/lint Filter 04 - Controls/top Panel 05 - Motor 06 - Burner 01 - Cover

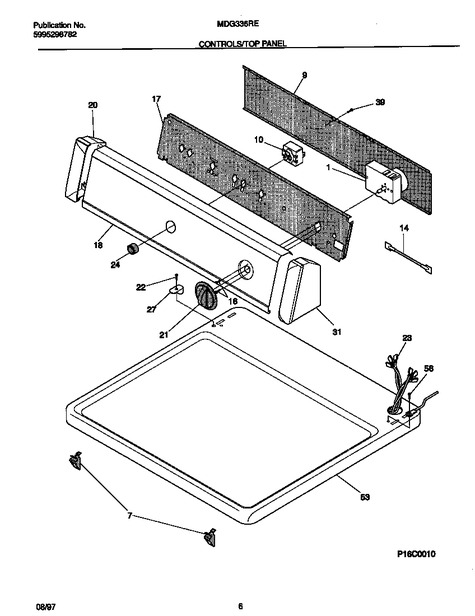

04 - Controls/top Panel   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	131062400	Timer-dryer	$221.90 Special Order
7	3205821	Clip-top Panel, To Front Panel	$25.70  In-Stock Retail: $24.99
9	3205898	Backsheet-console	$33.40 Special Order
10	131469000	Switch-push/start	$39.60 Special Order
14	5308015784	Resistor	$33.50 Special Order
16	5303283289	Screw, Cr Pan Head, 8-32 X 0.25, Thread Forming	$7.70 Special Order
17	131297306	Bracket-controls	$29.80 Special Order
18	131508900	Panel-control, Gray/black	$77.30 Special Order
20	5303291344	End Cap, Black, Lh	$43.30 Special Order
21	131873200	Knob-timer (Replaces: 131873202 131118902)	$50.80 Special Order
22	131266300	Screw-end Cap,cr Oval Head ,8-18ab X 1.250,black	$0.50 Special Order
23	131517200	Harness	$122.60 Special Order
24	131111500	Knob-start Switch, Black	$9.90 Special Order
27	131197000	Clip-control Panel	$9.30 Special Order
31	5303291352	End Cap, Black, Rh	$39.30 Special Order
39	131205100	Screw,no.8 Pan Head ,10-10b X 0.50 ,cr/sq Drive	$10.30 Special Order
53	131601318	Panel-top White	$84.70 Special Order
56	131243800	Screw, Pan Hd Locking, 8-32ca X 0.375, Cr/sq Drive	$7.40 Special Order
