Whirlpool KSRS22QFBL00 Parts List

Popular Searches: (Click to search)    assembly  bracket  cam  closer  complete  control  defrost  door  fan  grease  icemaker  metal  motor  paint  pressurized  silicone  spray  touch  upper  white


Select a Diagram

01 - Cabinet

02 - Refrigerator Liner

03 - Refrigerator Shelf

04 - Motor And Ice Container

05 - Refrigerator Door

06 - Freezer Door

07 - Dispenser Front

08 - Unit

09 - Freezer Liner

10 - Air Flow

11 - Icemaker

12 - Control, Lit/optional

Select Diagram ... 01 - Cabinet 02 - Refrigerator Liner 03 - Refrigerator Shelf 04 - Motor And Ice Container 05 - Refrigerator Door 06 - Freezer Door 07 - Dispenser Front 08 - Unit 09 - Freezer Liner 10 - Air Flow 11 - Icemaker 12 - Control, Lit/optional

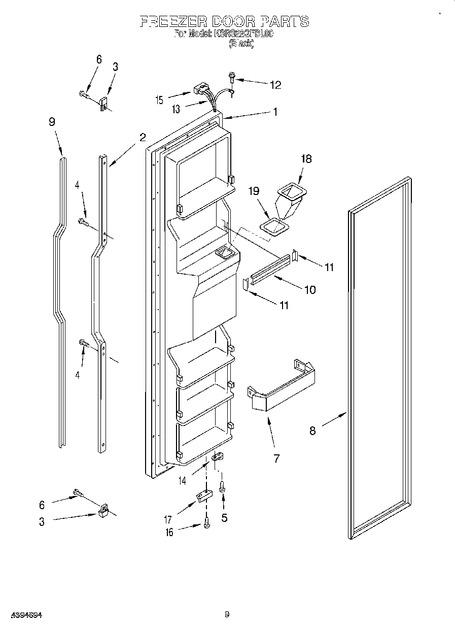

06 - Freezer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4387970	Freezer Door (includes No.8 And Dispenser Front Parts)	$485.20 Special Order
2	2194776B	Retainer, Insert	$89.30 Special Order
3	2194778B	End Cap (2)	$32.50 Special Order
4	WP489463	Screw	$4.80 Special Order
5	WP3400012	Screw	$4.80 Special Order
6	489090	Screw	Call for Availability
7	2171071	Shelf Bin (4)	$29.80 Special Order
8	2159080	Door Gasket, Magnetic (service)	$210.20 Special Order
9	2173832	Insert, Handle	$92.10 Special Order
10	WPW10307490	Trim, Door Shelf	$12.90 Special Order
11	WP2156006	End Cap (Replaces: 2156006)	$7.50  In-Stock Retail: $7.31
12	WP488234	Screw	$4.60 Special Order
13	2180229	Wire Harness	Call for Availability
14	4318165	Door Closer, Upper Cam (Replaces: 2182132)	$15.60  In-Stock Retail: $15.18
15	WP2154473	Connector	$15.30 Special Order
16	WP489483	Screw	$6.70  In-Stock Retail: $6.51
17	2195952	Bracket, Door Stop	$4.40 Special Order
18	2180204	Chute, Ice	$31.40 Special Order
19	2198249	Seal, Housing	$4.40 Special Order
