Maytag MSD2434GEQ Parts List

Popular Searches: (Click to search)    actuator  assy  auger  compressor  condenser  drier  fan  filter  hinge  ice  kit  lower  maker  motor  pin  r134a  screw  valve  water  yoke


Select a Diagram

01 - Compressor

02 - Controls

03 - Fountain

04 - Freezer Compartment

05 - Freezer Inner Door

06 - Freezer Outer Door

07 - Fresh Food Inner Door

08 - Fresh Food Outer Door

09 - Ice Bin

10 - Ice Maker

11 - Shelves & Accessories

12 - Supplemental Information

Select Diagram ... 01 - Compressor 02 - Controls 03 - Fountain 04 - Freezer Compartment 05 - Freezer Inner Door 06 - Freezer Outer Door 07 - Fresh Food Inner Door 08 - Fresh Food Outer Door 09 - Ice Bin 10 - Ice Maker 11 - Shelves & Accessories 12 - Supplemental Information

06 - Freezer Outer Door   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	61005758	Panel, Frz. Door (bsq) (Series: 11)	$184.10 Special Order
2	61005610	Handle, Door (bsq) (Series: 11)	$73.20 Special Order
	61005786	Screw (Series: 11)	$4.40 Special Order
	61005394	Screw (Series: 11)	Call for Availability
3	61005446	Extension, Handle (upr-bsq) (Series: 11)	$18.50 Special Order
4	61005495	Extension, Handle (lwr-bsq) (Series: 11)	$21.80 Special Order
5	61005394	Screw (Series: 11)	Call for Availability
	61005607	Cleat, Handle Extension (Series: 11)	$13.00 Special Order
6	61003422	Screw (Series: 11)	Call for Availability
	WP61005277	Board, Ftn. Switch (Series: 11) (Replaces: 61005277)	$97.90 Special Order
7	61004896	Hinge, Upper (Series: 11)	$28.00 Special Order
	WP3-24838-048	Screw (Series: 11)	$4.60 Special Order
8	61001922	Shim, Upper Hinge (Series: 11)	Call for Availability
9	3400112	Screw (Series: 11) (Replaces: 61003128)	$43.70 Special Order
	61006113	Hinge, Lower (zinc) (Series: 11)	$27.20 Special Order
10	WP61003174	Pin, Lower Hinge (Series: 11) (Replaces: 61003174)	Call for Availability
11	61004557	Tubing, Fountain (Series: 11)	$4.90 Special Order
	WP2300868	Union, Reducing (5/16``-5/16``) (Series: 11)	$18.70  In-Stock Retail: $18.17
12	W10856122	Screw (Series: 11)	$4.80 Special Order
	61005726	Closer, Door (w/cup) (Series: 11)	$18.30 Special Order
13	61004769	Cover, Lower Hinge (bsq) (Series: 11)	$17.90 Special Order
14	W10856122	Screw (Series: 11)	$4.80 Special Order
	61003273	Stop, Door (Series: 11)	$27.60 Special Order
15	WP8281196	Screw, Cover (Series: 11)	$4.80  In-Stock Retail: $4.59
	61004771	Cover, Upper Hinge (bsq) (Series: 11)	$4.40 Special Order
16	415013-35	Screw (Series: 11)	$8.20  In-Stock Retail: $7.99

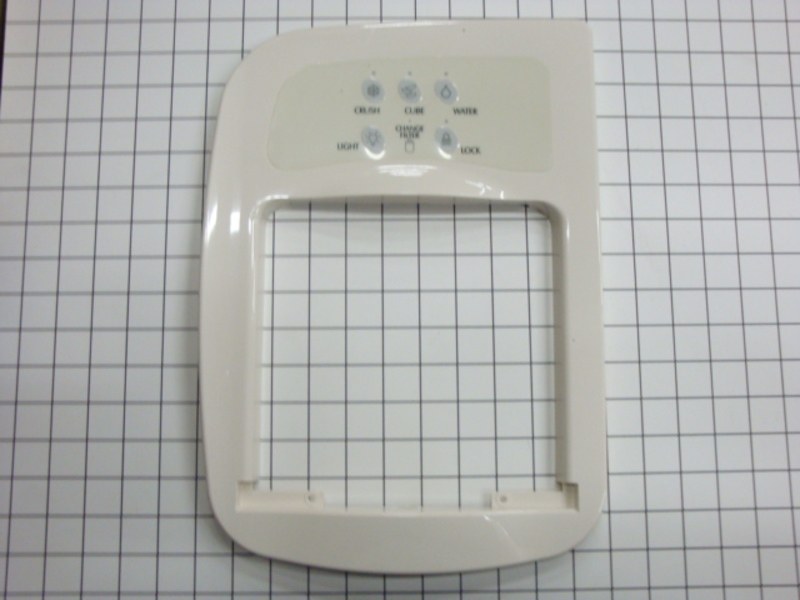

	61005499	Escutcheon (bsq) (Series: 11)	Call for Availability
