Maytag MGRL752BDQ14 Parts List

Popular Searches: (Click to search)    2oz  bake  black  bulb  burner  cap  door  gray  igniter  ignitor  light  oven  paint  pressurized  seal  sensor  spray  top  touch  white


Select a Diagram

01 - Cooktop Parts

02 - Control Panel Parts

03 - Chassis Parts

04 - Manifold Parts

05 - Door Parts

06 - Drawer And Rack Parts, Optional Parts (not Included)

Select Diagram ... 01 - Cooktop Parts 02 - Control Panel Parts 03 - Chassis Parts 04 - Manifold Parts 05 - Door Parts 06 - Drawer And Rack Parts, Optional Parts (not Included)

03 - Chassis Parts   |   Back to Common Parts

Zoom In | Zoom Out | Zoom Full

Double click the image below to zoom-in

Hover over  In-Stock to see individual location availability

Item #	Part #	Description	Price / Availability	Add to Cart
1	4022W007-19	Extension, Flue Box	$25.20 Special Order
2	W10857933	Spacer, Side Panel	$4.80 Special Order
3	W10857933	Support, Oven Bottom	$4.80 Special Order
4	2618F194-70	Panel, Side (2) (black)	Call for Availability
	74004965	Panel, Side (2) (bisque)	Call for Availability
	2618F194-71	Panel, Side (2) (white)	$47.70 Special Order
5	74007129	Support, Valve Regulator	$6.80 Special Order
6	74009853	Support, Spark Module	$25.70 Special Order
7	WP3801F656-51	Bracket, Anti-tip (Replaces: 74005564)	$4.40  In-Stock Retail: $4.20
9	3604F327-51	Shield, Heat	$47.70 Special Order
10	W11665456	Foot, Leveler (4)   (Replaces: 74002373)	$17.00  In-Stock Retail: $16.54
11	WP5504M003-19	Bottom, Oven	$174.30 Special Order
12	12001655	Sensor, Oven (Replaces: 74004944)	$33.60  In-Stock Retail: $33.54
13	74003503	Insulation, Bottom	$25.30 Special Order
14	74004461	Pan, Burner Bake   (Replaces: 74004465)	Call for Availability
15	3804F245-51	Retainer, Insul.	$67.70 Special Order
16	74001219	Baffle, Oven Frnt	$4.40 Special Order
17	4006D187-45	Box, Vent	$32.20 Special Order
18	74009653	Cover, Broil	$25.60 Special Order

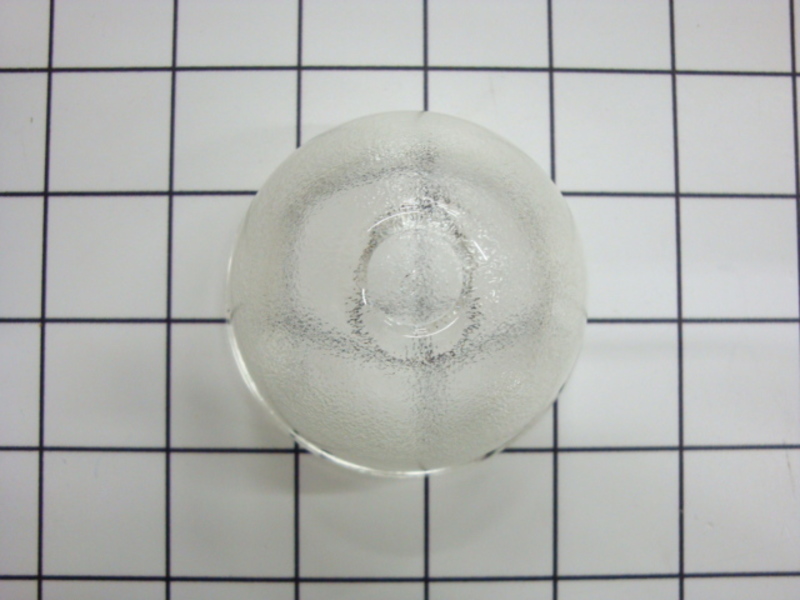

19	74003389	Cover, Bulb	$9.60 Special Order
20	74009884	Back, Main	$29.90 Special Order
21	WPW10162384	Seal, Oven (Replaces: 7201P046-60)	$92.10  In-Stock Retail: $89.78
22	74009767	Box, Brnr (left)	$7.20 Special Order
23	74010244	Lever, Lock	$24.30 Special Order
24	74009768	Box, Brnr (rt)	$25.60 Special Order
25	74009826	Cord, Power	$25.70 Special Order
26	3807F727-45	Support, Oven Bottom	$13.00 Special Order
28	WP74003387	Light Assembly   (Replaces: 74003387)	$4.50 Special Order
29	8009	Bulb, Oven Light (Replaces: 7407P103-60)	$20.00  In-Stock Retail: $19.99
30	74009764	Latch, Door Lock	$153.00 Special Order
31	8010P087-60	Spacer (left)	Call for Availability
	8010P088-60	Spacer (right)	Call for Availability
33	WP74003976	Screw (2)	$4.80 Special Order
34	74003975	Screw	$8.70 Special Order
35	W11233072	Screw	$8.70  In-Stock Retail: $8.47
36	74009569	Shield, Heat	$4.40 Special Order
37	74007476	Screw	$4.20 Special Order
NI	74009201	Insulation, Wrap	$63.20 Special Order
	WP74010942	Insulation, Back	$84.20 Special Order
	7002P078-60	Insulation, Oven	$12.30 Special Order
